Toyota >> Alphard >> GGH30 >> 3.5 Litre V6 2GR-FE DOHC 24v >> GGH30W 01/2015 - 06/2023 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Alphard GGH30 GGH30W Wagon [01/2015 to 06/2023] (3.5L 2GR-FE V6 DOHC VVT MPFI)

Part
Nason logo

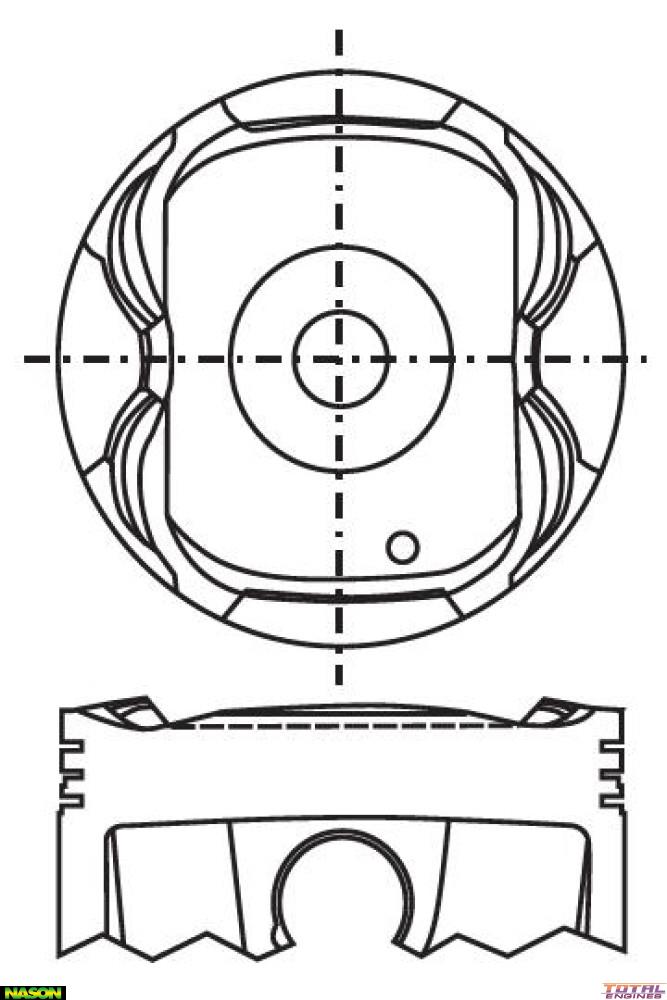

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 50.50mm
Comp Height: 31.50mm + 4.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4511

Tick This part will fit the following Vehicles:

Toyota Alphard GGH20 (3.5 Litre V6 2GR-FE DOHC 24v):
  • GGH20W FWD Wagon 3 Door [05/2008 to 01/2015] 208KW With Auto Transmission
Toyota Alphard GGH30 (3.5 Litre V6 2GR-FE DOHC 24v):
  • GGH30W FWD Wagon 4 Door [01/2015 to 06/2023] 221KW With Auto Transmission
Toyota Alphard GGH35 (3.5 Litre V6 2GR-FE DOHC 24v):
  • GGH35W AWD Wagon 4 Door [01/2015 to 06/2023] 221KW With Auto Transmission

Description

Nason, STD Size
