Toyota >> Blizzard >> LD20R >> 2.4 Litre 4 Cyl 2L-T SOHC 8v >> 05/1984 - 11/1989 2 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Blizzard LD20R Wagon [05/1984 to 11/1989] (2.4L 2L-T 4 Cyl SOHC Turbo Diesel Inj)

Part
Nason logo

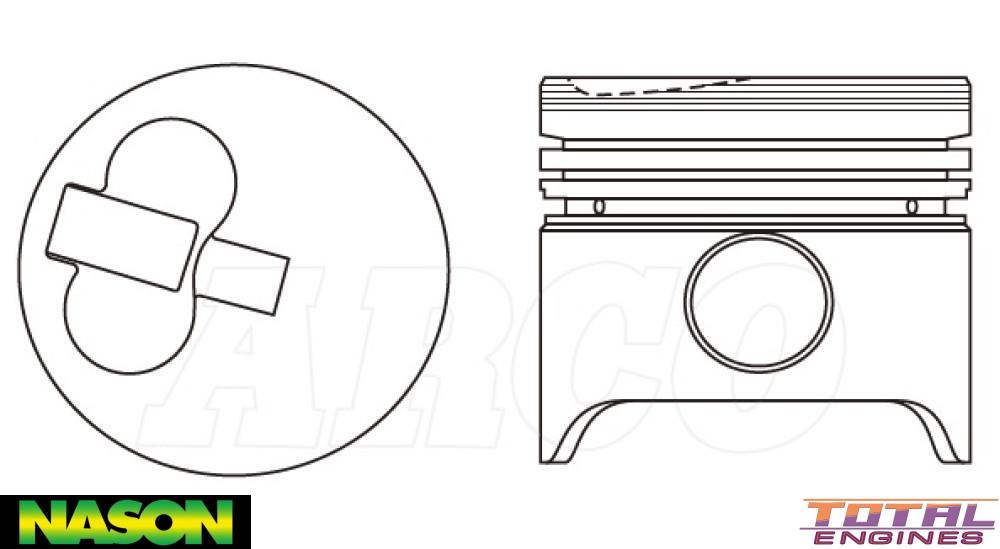

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings With 49.20mm Comp Height

$376.45

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 92.00mm
Size: 1.00mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 86.20mm
Comp Height: 49.20mm, -3.70mm
Pin Size: 29.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35867-1.00
Size: Oversize 1.00mm
Size: Pistons Only- Does not Include Rings With 49.20mm Complete Height

Tick This part will fit the following Vehicles:

Toyota Blizzard LD20R (2.4 Litre 4 Cyl 2L-T SOHC 8v):
  • 4WD Wagon 2 Door [05/1984 to 11/1989] With Manual Transmission

Description

With 49.20mm Comp Height

Combustion Bowl OD

Alfin Insert
