Nason Piston & pin set Fits Mazda 626 GD GD102 Hatchback [10/1987 to 12/1991] (2.2L F2 4 Cyl SOHC MPFI)

Name: Nason Piston & pin set Fits Mazda 626 GD GD102 Hatchback [10/1987 to 12/1991] (2.2L F2 4 Cyl SOHC MPFI)
Brand: Nason
SKU: TE1323327
Availability: OutOfStock

Nason Piston & pin set

Fitment Information:

Nason, STD Size

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	Std

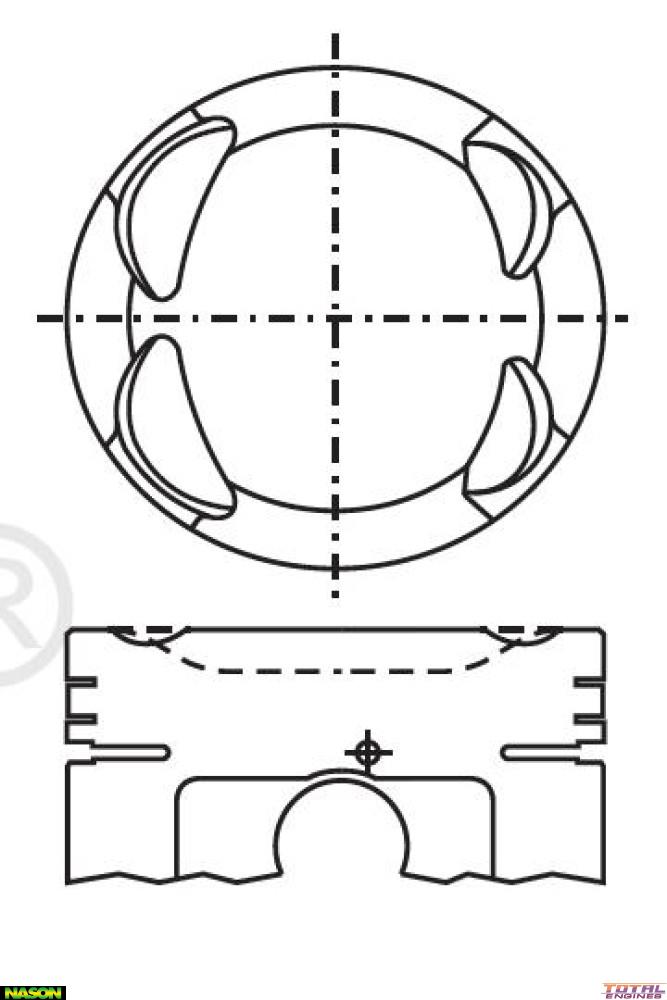

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	71.40mm
Comp Height:	36.50mm - 6.80mm
Pin Size:	22.00mm x 67.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M5664 or 5664

WARNING! This part will NOT FIT the following Vehicles:

Mazda B2200 (No Series) (2.2 Litre 4 Cyl F2 SOHC 12v):

UFY02 RWD Utility 2 Door [01/1993 to 12/1997] 68KW With Manual Transmission

This part will fit the following Vehicles:

Mazda 626 GD (2.2 Litre 4 Cyl F2 SOHC 12v):

GD102 FWD Hatchback 4 Door [10/1987 to 12/1991] 84KW With Auto or Manual Transmission
GD102 FWD Sedan 4 Door [10/1987 to 12/1991] 84KW With Auto or Manual Transmission

Mazda 626 GV (2.2 Litre 4 Cyl F2 SOHC 12v):

Estate GV102# FWD Wagon 4 Door [06/1988 to 01/1995] 84KW With Auto or Manual Transmission
GV1124 FWD Wagon 4 Door [03/1995 to 09/1997] 84KW With Auto or Manual Transmission
