Toyota >> Corolla >> AE80R >> 1.3 Litre 4 Cyl 2ALU SOHC 8v >> 05/1983 - 08/1986 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Corolla AE80R Sedan [05/1983 to 08/1986] (1.3L 2ALU 4 Cyl SOHC CARB)

Part
Nason logo

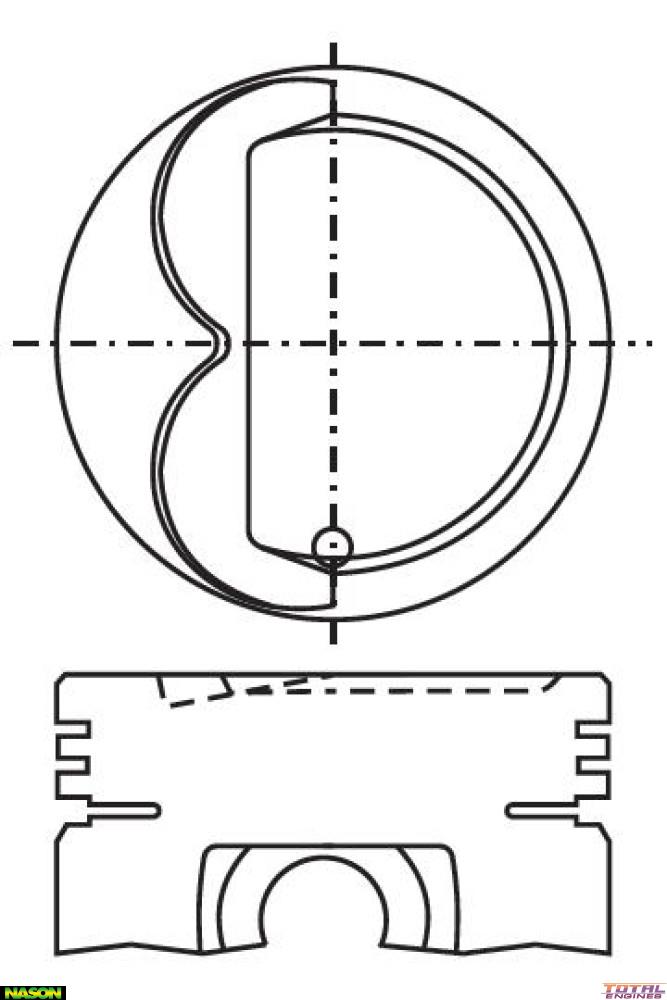

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4266 or 4266
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 61.00mm
Comp Height: 34.00mm - 2.50mm
Length: 65.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 76.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Corolla AE80R (1.3 Litre 4 Cyl 2ALU SOHC 8v):
  • FWD Hatchback 4 Door [05/1983 to 05/1989] 49KW With Auto or Manual Transmission
  • FWD Sedan 4 Door [05/1983 to 08/1986] 49KW With Auto or Manual Transmission
Toyota Sprinter AE80 (1.3 Litre 4 Cyl 2ALU SOHC 8v):
  • FWD Hatchback 4 Door [05/1983 to 05/1985] With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
