Toyota >> Corolla >> KE10R >> 1.1 Litre 4 Cyl K OHV 8v >> 01/1968 - 08/1969 2 Door Sedan >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Corolla KE10R Sedan [01/1968 to 08/1969] (1.1L K 4 Cyl OHV CARB)

Part
Nason logo

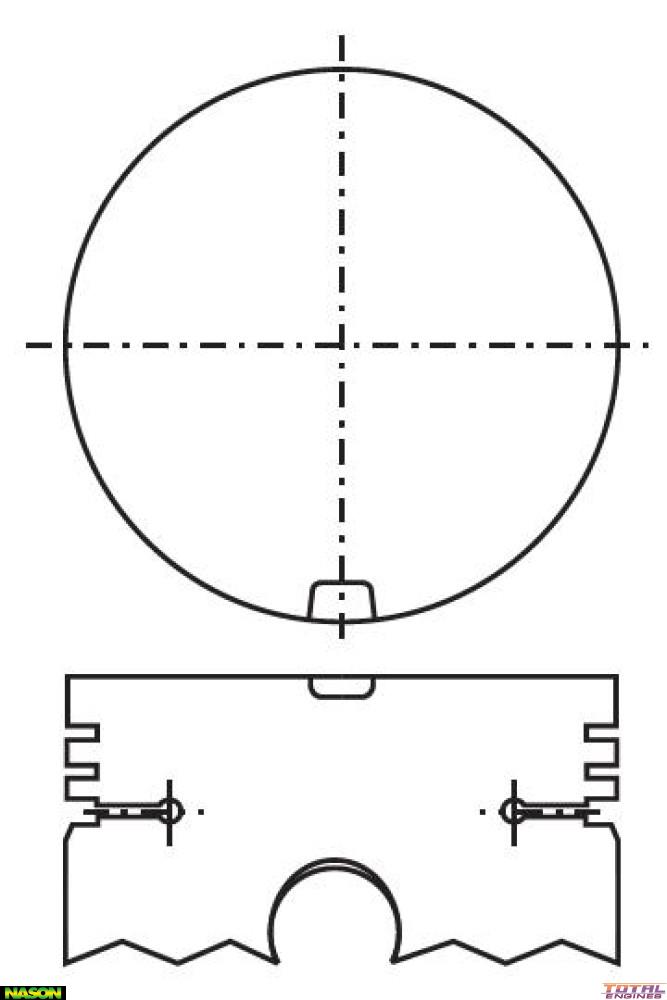

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C6813 or 6813
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 18.00mm x 61.00mm
Comp Height: 36.00mm
Length: 75.00mm
Piston Type: Cast
Head Type: Flat Top
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Corolla KE10R (1.1 Litre 4 Cyl K OHV 8v):
  • RWD Sedan 2 Door [01/1968 to 08/1969] 44KW With Manual Transmission
Toyota Corolla KE15R (1.1 Litre 4 Cyl K OHV 8v):
  • RWD Coupe 2 Door [01/1968 to 08/1969] 44KW With Auto or Manual Transmission
Toyota Corolla KE16R (1.1 Litre 4 Cyl K OHV 8v):
  • RWD Wagon 2 Door [01/1968 to 08/1969] 44KW With Auto or Manual Transmission

Description

Nason, STD Size
