Toyota >> Dyna >> LY111R >> 2.8 Litre 4 Cyl 3L SOHC 8v >> 10/1996 - 05/1999 2 Door Truck >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Dyna LY111R Truck [10/1996 to 05/1999] (2.8L 3L 4 Cyl SOHC Diesel Inj)

Part
Nason logo

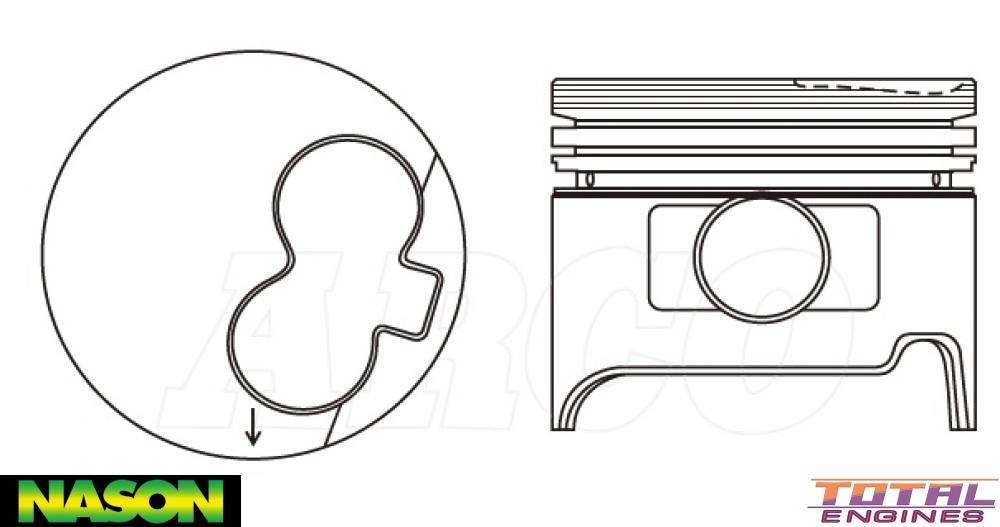

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$392.54

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 80.30mm
Comp Height: 42.30mm, -0.15mm, -2.00mm
Pin Size: 29.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35892-0.50

Tick This part will fit the following Vehicles:

Toyota Dyna LY111R (2.8 Litre 4 Cyl 3L SOHC 8v):
  • 4X2 Truck 2 Door [10/1996 to 05/1999] With Auto or Manual Transmission
Toyota Dyna LY211R (2.8 Litre 4 Cyl 3L SOHC 8v):
  • 150 4X2 Truck 2 Door [05/1995 to 08/2001] 60KW With Manual Transmission
Toyota Dyna LY61R (2.8 Litre 4 Cyl 3L SOHC 8v):
  • 150 4X2 Truck 2 Door [08/1988 to 05/1995] 60KW With Manual Transmission

Description

Combustion Bowl OD

Alfin Insert
