Toyota >> Dyna >> LY220R >> 3.0 Litre 4 Cyl 5L SOHC 8v >> 100 07/2001 - 04/2005 2 Door Truck >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Dyna LY220R 100 Truck [07/2001 to 04/2005] (3.0L 5L 4 Cyl SOHC EFI)

Part
Nason logo

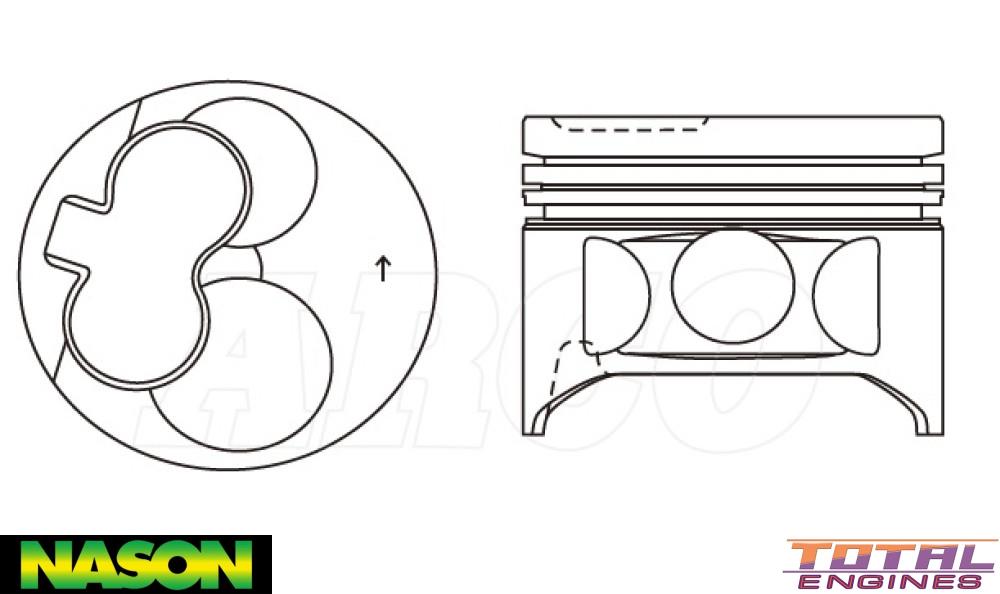

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$563.06

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 99.50mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type: Cast
Length: 80.30mm
Comp Height: 42.30mm, -0.90mm, -2.20mm
Pin Size: 29.00mm x 73.90mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 35929-0.50

Tick This part will fit the following Vehicles:

Toyota Dyna LY112R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4X2 Truck 2 Door [05/1999 to 07/2001] With Auto or Manual Transmission
Toyota Dyna LY220R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 100 4X2 Truck 2 Door [07/2001 to 04/2005] 66KW With Auto or Manual Transmission
Toyota Dyna LY230R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 150 4X2 Truck 2 Door [07/2001 to 04/2005] 66KW With Auto or Manual Transmission

Description

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling
