Toyota >> Dyna >> LY30R >> 2.2 Litre 4 Cyl L SOHC 8v >> 03/1979 - 07/1983 2 Door Truck >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Dyna LY30R Truck [03/1979 to 07/1983] (2.2L 4 Cyl SOHC Diesel Inj)

Part
Nason logo

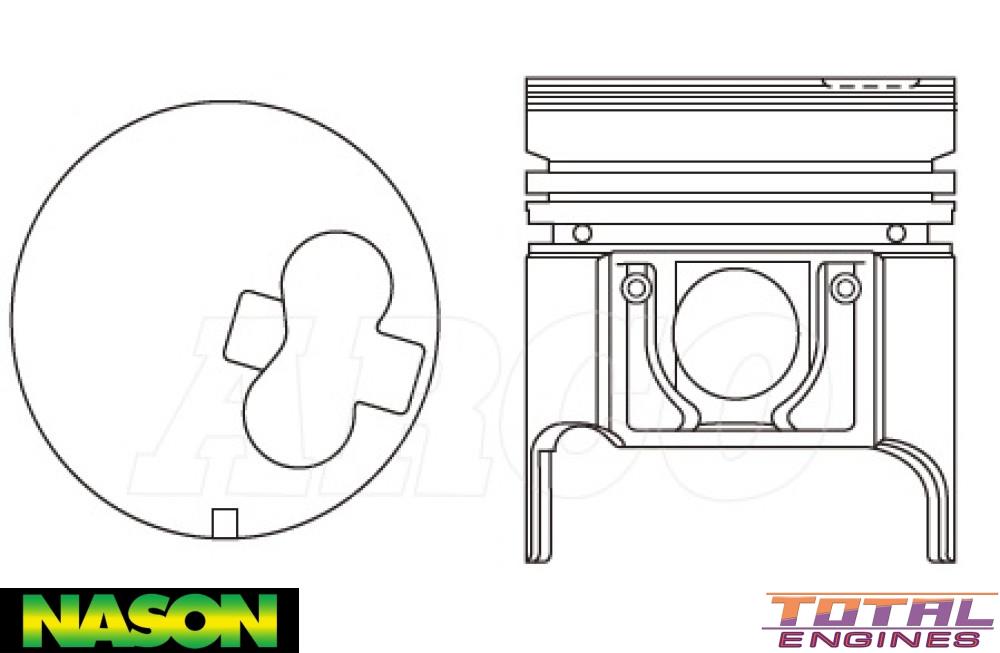

Nason Piston & pin set

Fitment Information:

Oversize 1.00 - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 90.00mm
Size: 1.00mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 99.00mm
Comp Height: 52.00mm, -1.40mm
Pin Size: 27.00mm x 73.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35862-1.00

Tick This part will fit the following Vehicles:

Toyota Dyna LY30R (2.2 Litre 4 Cyl L SOHC 8v):
  • 4X2 Truck 2 Door [03/1979 to 07/1983] With Manual Transmission

Description

Combustion Bowl OD
