Toyota >> Dyna >> YU62R >> 2.2 Litre 4 Cyl 4Y OHV 8v >> 200 11/1986 - 07/1991 2 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Dyna YU62R 200 Cab Chassis [11/1986 to 07/1991] (2.2L 4Y 4 Cyl OHV CARB)

Part
Nason logo

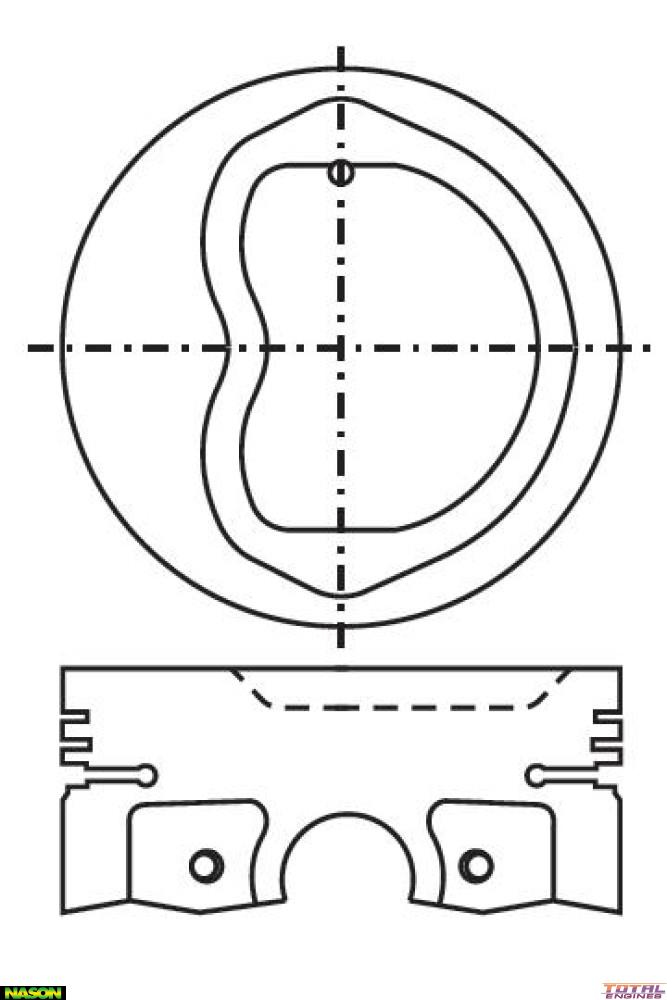

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 91.00mm
Size: Std
Head Type: Dish Top
Piston Type: Cast
Length: 65.00mm
Comp Height: 35.00mm - 6.20mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4480 or 4480

Tick This part will fit the following Vehicles:

Toyota Dyna YU62R (2.2 Litre 4 Cyl 4Y OHV 8v):
  • 200 RWD Cab Chassis 2 Door [11/1986 to 07/1991] 69KW With Manual Transmission

Description

Nason, STD Size
