Toyota >> Estima >> ACR40R >> 2.4 Litre 4 Cyl 2AZ-FE DOHC 16v >> 01/2000 - 01/2006 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Estima ACR40R Wagon [01/2000 to 01/2006] (2.4L 2AZ-FE 4 Cyl DOHC VVT MPFI)

Part
Nason logo

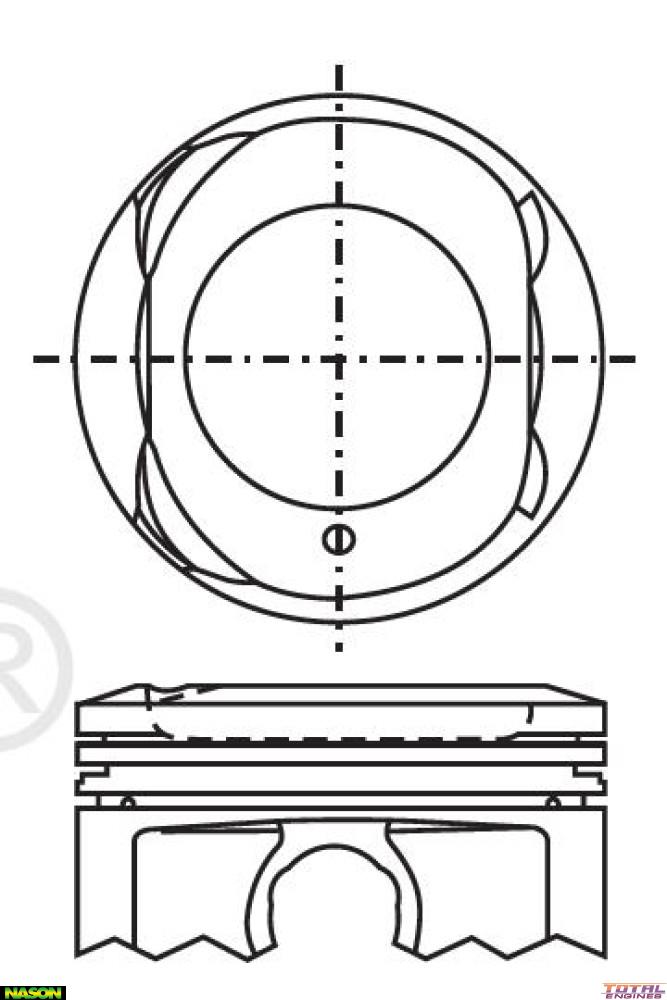

Nason Piston & Pin Set

$328.19

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.80mm
Comp Height: 32.80mm - 6.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5090
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Estima ACR30R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [02/2000 to 01/2006] 119KW With Auto Transmission
Toyota Estima ACR40R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • 4WD Wagon 4 Door [01/2000 to 01/2006] 119KW With Auto Transmission
Toyota Estima ACR50R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [01/2006 to 10/2019] 126KW With Continuously Variable Transmission
Toyota Estima ACR55R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • 4WD Wagon 4 Door [01/2006 to 10/2019] 126KW With Continuously Variable Transmission

Description

Nason Piston & Pin Set 0.50 Oversize - Elevate Your Engine Performance!

Brand: Nason

Category: Cylinder Block

Unlock the true potential of your Toyota Vellfire with the Nason Piston & Pin Set 0.50 Oversize, engineered for performance and durability. This high-quality piston set is perfect for enhancing engine efficiency and is designed to perfectly fit Toyota Vellfire ANH20R and ANH25R models with a 2.4L engine.

Key Features:

  • Anodized Head: Each piston features anodized head, top, and second ring lands for enhanced durability and reduced friction during operation.
  • Precision Engineering: The set includes 4 pistons and pins with a standard bore size of 88.50mm, ensuring a perfect fit and optimal performance.
  • Dish Top Design: Featuring a dish top with 4 valve reliefs, these pistons are constructed to maximize combustion efficiency, resulting in improved power output.
  • Superior Construction: Crafted from cast material, these pistons are built to withstand high pressures while maintaining peak performance.

Specifications:

  • Size: 0.50mm / .020\" oversize ensures a snug fit for superior sealing.
  • Length: 55.80mm and Comp Height of 32.80mm - 6.50mm create a balanced assembly for refined engine operation.
  • Pin Size & Type: A full floating design with a pin size of 22.00mm x 56.00mm enhances reliability and smooth movement.
  • Skirt Coating: Yes, for reduced wear and extended lifespan.
  • Ring Specifications: Includes a standard top and second ring width of 1.20mm, and an oil ring width of 2.00mm, with a Ring Set of 2C5090.

Why Choose Nason?

When it comes to engine components, precision and reliability are paramount. Nason's commitment to quality guarantees that you receive an exceptional product that not only meets but exceeds OEM standards.

Upgrade your vehicle's performance with the Nason Piston & Pin Set 0.50 Oversize today and experience enhanced acceleration and fuel efficiency like never before!

Whether you're a professional mechanic, a car enthusiast, or simply looking to replace worn-out parts, this piston set is an investment in your vehicle's longevity and performance. Don't miss out—order yours now and give your Toyota Vellfire the boost it deserves!
