Toyota >> Estima >> ACR40R >> 2.4 Litre 4 Cyl 2AZ-FE DOHC 16v >> 01/2000 - 01/2006 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Estima ACR40R Wagon [01/2000 to 01/2006] (2.4L 2AZ-FE 4 Cyl DOHC VVT MPFI)

Part
Nason logo

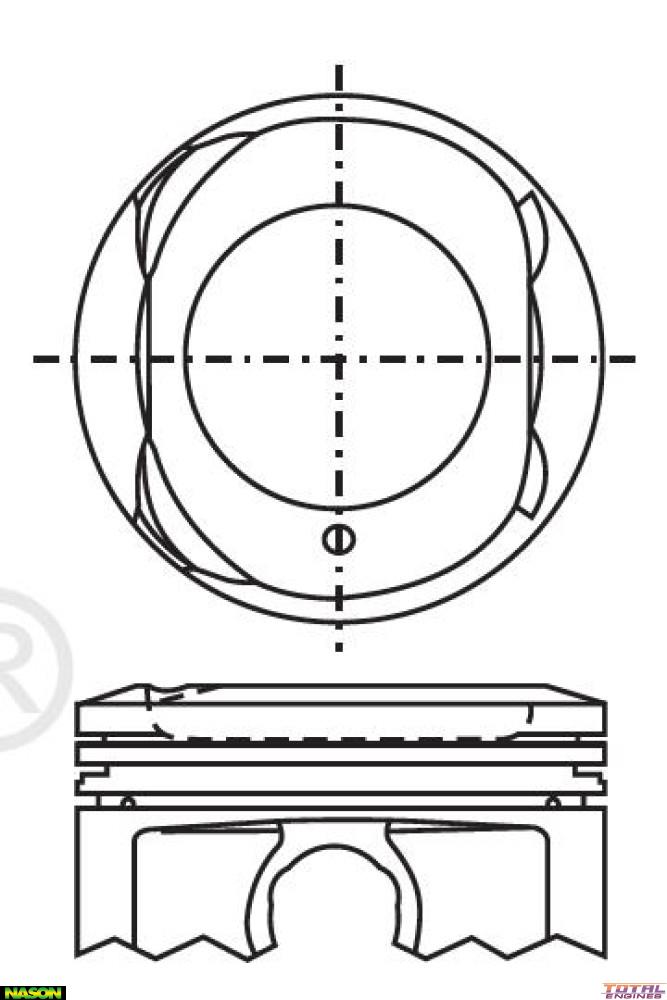

Nason Piston & Pin Set

$328.19

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.80mm
Comp Height: 32.80mm - 6.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5090

Tick This part will fit the following Vehicles:

Toyota Estima ACR30R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [02/2000 to 01/2006] 119KW With Auto Transmission
Toyota Estima ACR40R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • 4WD Wagon 4 Door [01/2000 to 01/2006] 119KW With Auto Transmission
Toyota Estima ACR50R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [01/2006 to 10/2019] 126KW With Continuously Variable Transmission
Toyota Estima ACR55R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • 4WD Wagon 4 Door [01/2006 to 10/2019] 126KW With Continuously Variable Transmission

Description

Nason Piston & Pin Set STD Size for Toyota Vellfire

Elevate Your Engine Performance with Nason

Upgrade your engine’s performance with the Nason Piston & Pin Set, designed specifically for Toyota Vellfire models ANH20R and ANH25R (2.4L). This premium piston set is engineered to deliver unparalleled durability and efficiency, ensuring your vehicle runs smoothly for miles to come.

Premium Specifications:

  • Anodized Head: Features anodized head with top and 2nd ring lands for enhanced performance and longevity.
  • Piston Set: Comes complete with 4 high-quality pistons and pins, ensuring you have everything you need for a comprehensive rebuild.
  • Standard Bore Size: Optimally designed for an 88.50mm bore size, making it a perfect fit for your engine.
  • Dish Top with Valve Reliefs: The pistons feature a dish top design complete with 4 valve reliefs, allowing for improved airflow and combustion efficiency.
  • Materials: Crafted from durable cast material, guaranteeing robust performance under pressure.
  • Length & Compression Height: Each piston measures 55.80mm in length with a compression height of 32.80mm - 6.50mm, tailored to fit seamlessly within your engine.

Perfect Fit for Performance

  • Pin Type: The full floating pin type (22.00mm x 56.00mm) provides ease of installation and reliability, reducing friction and wear over time.
  • Skirt Coating: Engineered with a specially formulated skirt coating, these pistons minimize friction and enhance the lifespan of your engine.
  • Ring Specifications: With top and 2nd ring widths of 1.20mm and an oil ring width of 2.00mm, this piston set meets the highest standards for oil control and sealing.

Upgrade Today!

With the Nason Piston & Pin Set STD Size, you can trust that your Toyota Vellfire will perform at its best. Don’t compromise on quality; choose Nason for an engine that runs smoothly and efficiently. Whether you're restoring a classic or upgrading your current ride, this piston set is the ideal choice for enthusiasts and professionals alike. Order now and experience the difference!
