Toyota >> Granvia >> VCH16R >> 3.4 Litre V6 5VZ-FE DOHC 24v >> 08/1997 - 05/2002 3 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Granvia VCH16R [08/1997 to 05/2002] (3.4L 5VZ-FE V6 DOHC MPFI)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 93.50mm
Size: Std

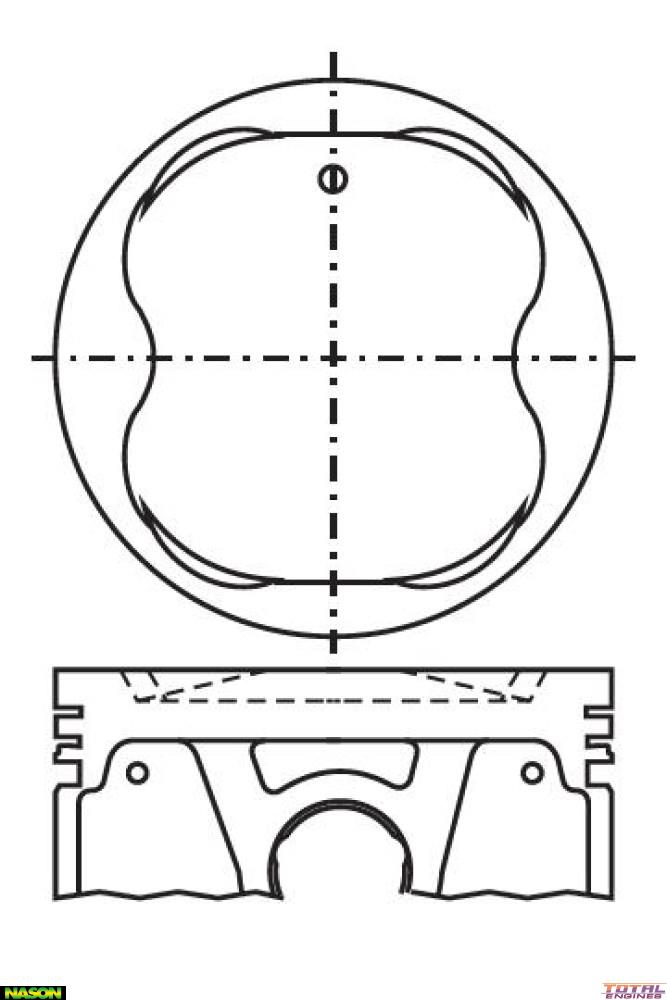

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 63.00mm
Comp Height: 34.00mm - 4.90mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4911

Tick This part will fit the following Vehicles:

Toyota Granvia VCH10R (3.4 Litre V6 5VZ-FE DOHC 24v):
  • RWD Van 3 Door [08/1997 to 05/2001] 134KW With Auto Transmission
Toyota Granvia VCH16R (3.4 Litre V6 5VZ-FE DOHC 24v):
  • 4WD 3 Door [08/1997 to 05/2002] 134KW With Auto Transmission

Description

Nason, STD Size
