Toyota >> Hiace >> KDH200R >> 2.5 Litre 4 Cyl 2KD-FTV DOHC 16v >> 08/2004 - 09/2007 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace KDH200R Van [08/2004 to 09/2007] (2.5L 2KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$526.38

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 92.00mm
Size: 0.50mm

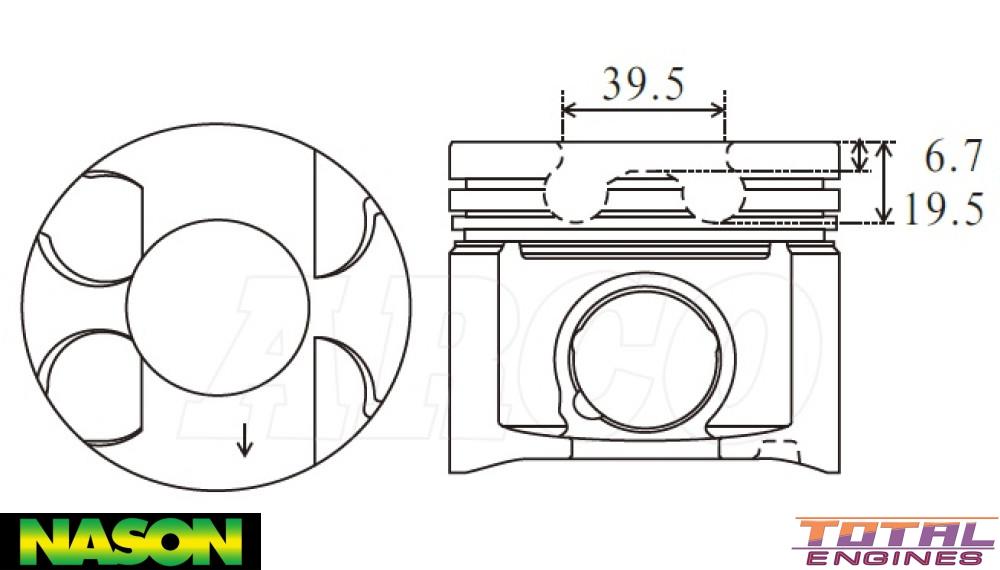

Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 82.20mm
Comp Height: 54.20mm, -6.70mm, -19.50mm
Combustion Bowl OD: 39.50mm
Pin Size: 34.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35986-0.50mm

Tick This part will fit the following Vehicles:

Toyota Hiace KDH200R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2004 to 09/2007] 82KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [03/2005 to 10/2006] 75KW With Auto or Manual Transmission
  • SLWB KDH220 RWD Van 3 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission
Toyota Hiace KDH205R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2004 to 09/2007] 82KW With Auto or Manual Transmission
Toyota Hiace KDH222R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission
Toyota Hiace KDH225R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • 4WD 3 Door [01/2005 to 09/2007] 82KW With Auto Transmission
Toyota Hiace KDH227R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • COMMUTER BUS 4WD 3 Door [01/2005 to 07/2007] With Auto Transmission

Description

Nason Piston & Pin Set 0.50 Oversize – Premium Performance for Your Toyota Engine

Elevate your engine's performance with the Nason Piston & Pin Set 0.50 Oversize, specifically designed for Toyota vehicles including the Hiace KDH227R and Hilux KUN25R. Crafted with precision and engineered for efficiency, this piston and pin set ensures your engine runs smoother, stronger, and more reliably.

Key Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Alfin Insert with Oil Gallery Cooling: Designed to enhance piston durability and optimize thermal efficiency, allowing for cooler operation during high-stress conditions.

Compatibility:

This high-quality piston set seamlessly fits:

  • Toyota Hiace KDH227R 2.5L
  • Toyota Hilux KUN25R 2.5L

Specifications:

  • Piston Set: Includes 4 x Pistons & Pins for complete engine overhauls.
  • Standard Bore Size: 92.00mm for a precise fit.
  • Oversize Size: 0.50mm for enhanced performance.
  • Head Type: Combustion Bowl with 4 Valve Relief, ensuring effective fuel combustion and power delivery.
  • Piston Type: Durable cast construction for long-lasting strength.
  • Length: 82.20mm and Comp Height: 54.20mm, -6.70mm, -19.50mm for optimized fit and function.
  • Combustion Bowl OD: 39.50mm for improved airflow dynamics.
  • Pin Size: 34.00mm x 65.00mm, designed with a Full Floating Pin Type for reduced friction and wear.
  • Skirt Coating: No coating for a direct interaction with the cylinder wall.
  • Piston to Bore: As indicated on the box for precise installation.
  • Ring Widths: Top Ring – 2.00mm, Second Ring – 1.50mm, Oil Ring – 3.00mm, ensuring effective sealing and oil control.
  • Ring Set: 35986-0.50mm included for comprehensive functionality.

Upgrade your engine's performance with the Nason Piston & Pin Set 0.50 Oversize. Built for reliability and engineered to perfection, this piston set is the ideal choice for automotive enthusiasts and professionals seeking quality and performance. Don’t settle for less; choose Nason for your next engine rebuild!

Order now and experience the difference!
