Toyota >> Hiace >> KDH201R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> 08/2007 - Onwards 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace KDH201R Van [08/2007 Onwards] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings 3.90mm To Piston Crown

$720.72

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 78.50mm

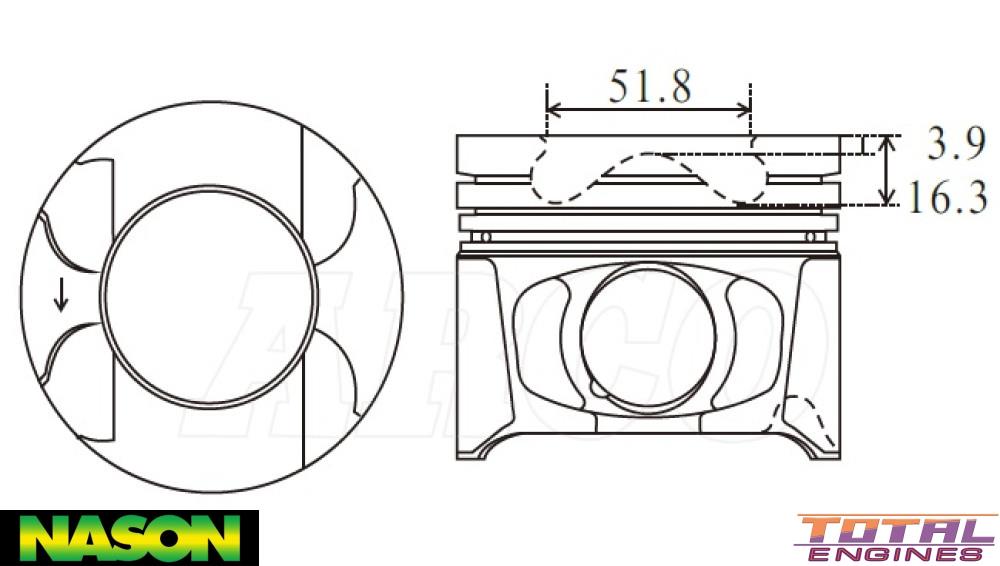

Comp Height: 49.60mm, -3.90mm, -16.30mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-STD
Size: Pistons Only- Does not Include Rings 3.90mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hiace KDH201R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2007 Onwards] 100KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH211R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [09/2007 to 10/2017] With Auto Transmission
Toyota Hiace KDH221R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [08/2007 Onwards] 101KW With Auto Transmission
  • SLWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
  • Commuter Bus RWD Bus 2 Door [08/2007 Onwards] 101KW With Auto Transmission

Description

Nason Piston & Pin Set STD Size – Unleash Your Engine's Potential!

Brand: Nason

Category: Cylinder Block

Revitalize your Toyota Landcruiser KDJ150R 3.0L SUV with the premium Nason Piston & Pin Set. Designed for precision and performance, this set will help your engine achieve optimal efficiency and power, making it an essential upgrade for any serious off-road enthusiast or daily driver.

Key Features:

  • Superior Craftsmanship: Each piston is cast with precision, ensuring durability and reliability under demanding conditions. The Alfin insert enhances heat dissipation, while the innovative oil gallery cooling minimizes wear during operation.
  • Tailored Fit: This piston set is specifically engineered for the Toyota Landcruiser KDJ150R 3.0L SUV. Please note that it WILL NOT fit other models, such as the KDJ150R 3.0L variant. Ensure compatibility for peak performance!
  • Optimal Specifications:
  • Bore Size: Standard 96.00mm
  • Combustion Bowl: 51.80mm diameter
  • Piston Length: 78.50mm
  • Compression Height: 49.60mm
  • Pin Size: 34.00mm x 73.00mm (Full Floating)
  • Piston to Bore: Refer to the label on the box
  • Skirt Coating: Enhanced for durability and performance
  • Ring Details: This set includes 4 pistons and pins only. Please note that it does not include piston rings. Top ring width is 2.00mm (Half Keystone), second ring width is 1.50mm, and the oil ring width is 3.00mm. Compatible with Ring Set 35987-STD.

Upgrade Your Ride: Whether you’re tackling tough terrains or cruising through city streets, the Nason Piston & Pin Set provides the quality and performance you need. Don’t miss the opportunity to enhance your engine’s responsiveness and longevity.

Warning: Ensure compatibility with your vehicle. This product will NOT FIT the Toyota Landcruiser KDJ150R 3.0L, and purchasing without verifying fitment may result in fitting issues.

Unlock the full potential of your Toyota Landcruiser and invest in the Nason Piston & Pin Set today! Experience the perfect blend of durability, performance, and precision engineering.
