Toyota >> Hiace >> KDH201R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> 08/2007 - Onwards 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace KDH201R Van [08/2007 Onwards] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

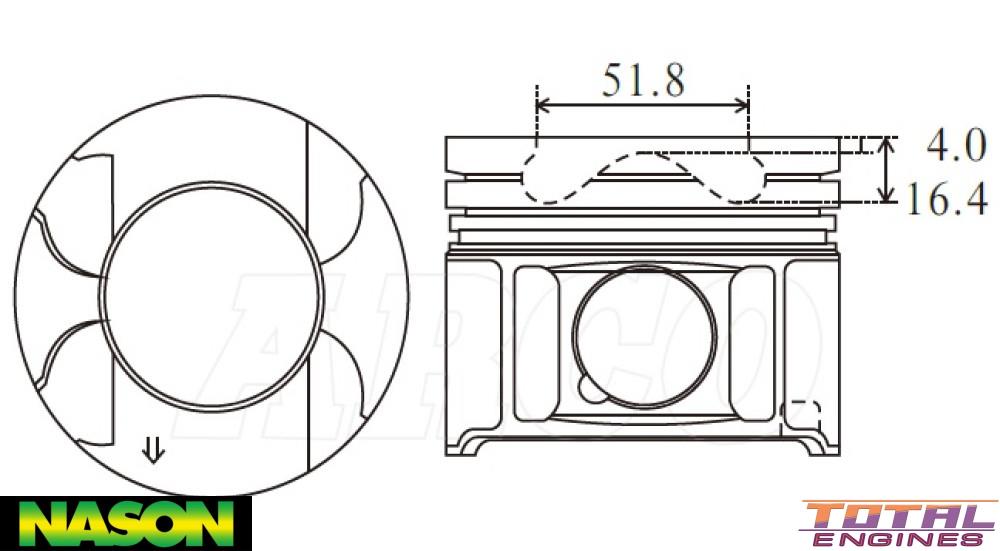

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings 4.0mm To Piston Crown

$756.11

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 77.60mm
Comp Height: 49.60mm, -4.00mm, -16.40mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-STD
Size: Pistons Only- Does not Include Rings 4.0mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hiace KDH201R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2007 Onwards] 100KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH211R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [09/2007 to 10/2017] With Auto Transmission
Toyota Hiace KDH221R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [08/2007 Onwards] 101KW With Auto Transmission
  • SLWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
  • Commuter Bus RWD Bus 2 Door [08/2007 Onwards] 101KW With Auto Transmission

Description

Nason Piston & Pin Set - Standard Size for Toyota Landcruiser KDJ150R

Revitalize your Toyota Landcruiser KDJ150R with the high-performance Nason Piston & Pin Set, meticulously designed to deliver optimal power and efficiency. Whether you’re a professional mechanic or an avid DIY enthusiast, this standard size piston set is engineered for durability and precision to enhance your vehicle's performance.

Product Features:

  • Premium Construction: Crafted from high-quality cast materials, this piston set is built to last. The aluminum alfin insert provides superior thermal conductivity, ensuring efficient heat dissipation.
  • Advanced Oil Gallery Cooling: Equipped with an innovative oil gallery cooling system, these pistons manage engine temperature effectively, contributing to enhanced engine longevity and performance.
  • Anodized Head: The anodized finish on the piston head reduces friction and improves reliability, making it a smart addition to your engine rebuild.

Specifications:

  • Piston Set: Includes 4 x Pistons & Pins
  • Standard Bore Size: 96.00mm
  • Combustion Bowl Diameter: 51.80mm
  • Pin Size: 34.00mm x 73.00mm (Full Floating)
  • Piston Length: 77.60mm
  • Compression Height: 49.60mm, -4.00mm, -16.40mm
  • Ring Set Reference: 35987-STD (Note: Pistons Only - Does not include rings)
  • Top Ring Width: 2.00mm Half Keystone
  • 2nd Ring Width: 1.50mm
  • Oil Ring Width: 3.00mm
  • Skirt Coating: Yes, for enhanced durability

Compatibility:

This piston & pin set is specifically designed for the Toyota Landcruiser KDJ150R 3.0L SUV. WARNING! This product will NOT FIT the following Vehicles: Toyota Landcruiser KDJ150R 3.0L. Please ensure the compatibility of your vehicle before purchasing.

Transform your engine with the Nason Piston & Pin Set, ensuring you have the durability, performance, and reliability that your Toyota Landcruiser deserves. Order now and experience the difference!
