Toyota >> Hiace >> KDH201R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> 08/2007 - Onwards 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace KDH201R Van [08/2007 Onwards] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings 8.4mm To Piston Crown

$717.50

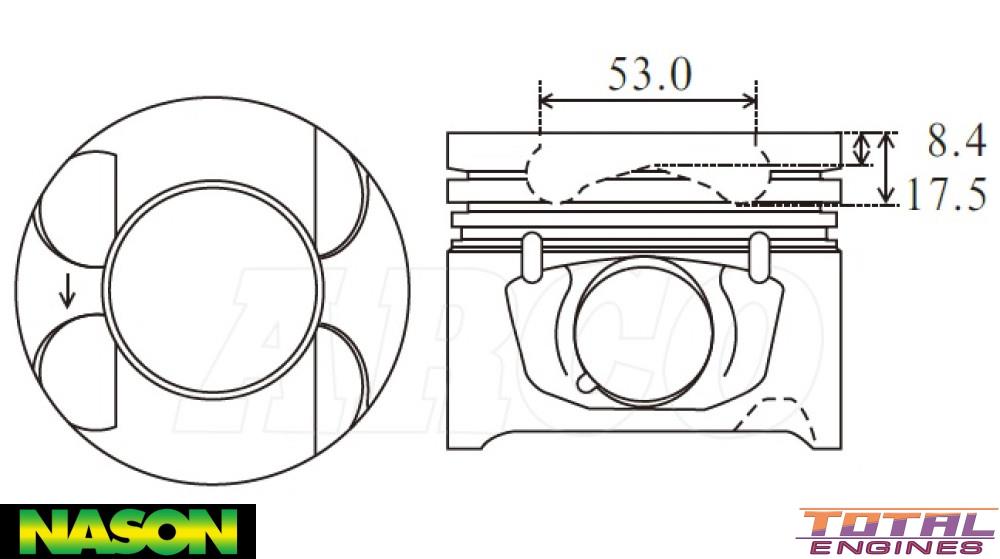

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 1.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.60mm, -8.40mm, -17.50mm
Combustion Bowl OD: 53.00mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-1.00mm
Size: Oversize 1.00mm
Size: Pistons Only- Does not Include Rings 8.4mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hiace KDH201R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2007 Onwards] 100KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH211R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [09/2007 to 10/2017] With Auto Transmission
Toyota Hiace KDH221R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [08/2007 Onwards] 101KW With Auto Transmission
  • SLWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
  • Commuter Bus RWD Bus 2 Door [08/2007 Onwards] 101KW With Auto Transmission

Description

Nason Piston & Pin Set - 1.00 Oversize

Unlock the full potential of your engine with the Nason Piston & Pin Set, expertly designed for performance and durability. This high-quality piston set is perfect for enhancing the functionality of your Toyota Landcruiser KDJ150R 3.0L SUV. Engineered with precision and crafted from robust materials, these pistons are built to withstand the demands of your vehicle while delivering exceptional performance.

Key Features:

  • Specifications:
  • Piston Set Includes: 4 Piston Pins
  • Standard Bore Size: 96.00mm
  • Oversize Size: 1.00mm
  • Piston Length: 78.50mm
  • Compression Height: 49.60mm, -8.40mm, -17.50mm
  • Combustion Bowl Diameter: 53.00mm
  • Pin Size: 34.00mm x 73.00mm (Full Floating)
  • High-Performance Design:

Featuring an Alfin insert with oil gallery cooling, the Nason Piston & Pin Set ensures optimal temperature control and efficient oil flow for long-lasting reliability and performance.

  • Engineered for Precision:

Each piston boasts a combustion bowl with 4 valve reliefs, providing enhanced combustion efficiency and maximizing power output. The skirt coating reduces friction and improves performance, making these pistons a fantastic upgrade for your engine.

  • Custom Fit:

Designed specifically for the Toyota Landcruiser KDJ150R 3.0L, this piston set ensures a precise fit for your engine rebuilds or enhancements. WARNING! This product will NOT fit Toyota Landcruiser KDJ150R 3.0L with any other engine configurations!

  • Note: Piston set does not include rings. Compatible ring set (35987-1.00mm) is sold separately.

Elevate your Landcruiser’s performance with the Nason Piston & Pin Set - 1.00 Oversize. Experience the perfect balance of power and efficiency, and get your vehicle ready for any adventure that lies ahead. Order now and make a lasting investment in your engine’s performance!
