Toyota >> Hiace >> KDH205R >> 2.5 Litre 4 Cyl 2KD-FTV DOHC 16v >> 08/2004 - 09/2007 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace KDH205R Van [08/2004 to 09/2007] (2.5L 2KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

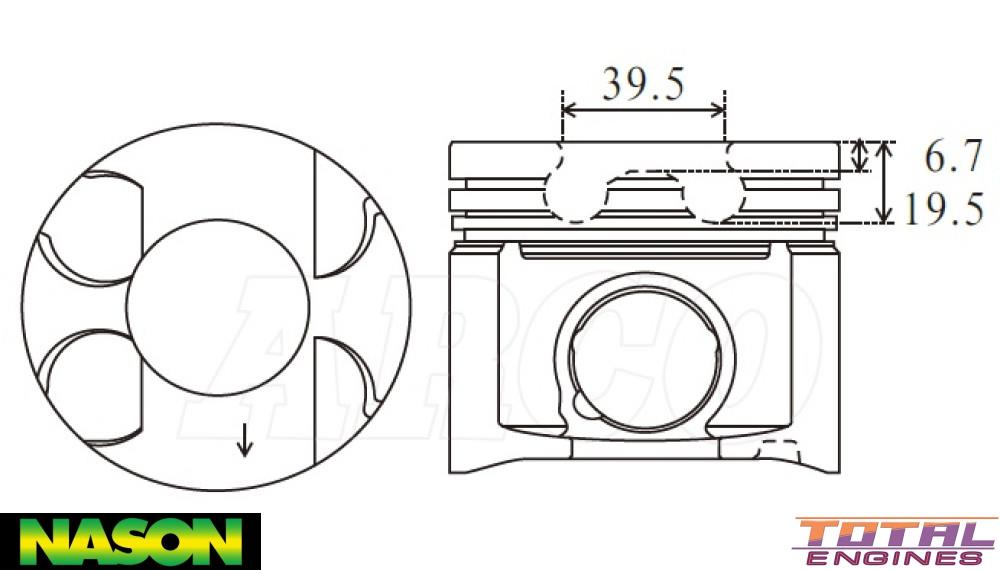

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 92.00mm
Size: Std
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 82.20mm
Comp Height: 54.20mm, -6.70mm, -19.50mm
Combustion Bowl OD: 39.50mm
Pin Size: 34.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35986-STD

Tick This part will fit the following Vehicles:

Toyota Hiace KDH200R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2004 to 09/2007] 82KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [03/2005 to 10/2006] 75KW With Auto or Manual Transmission
  • SLWB KDH220 RWD Van 3 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission
Toyota Hiace KDH205R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2004 to 09/2007] 82KW With Auto or Manual Transmission
Toyota Hiace KDH222R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission
Toyota Hiace KDH225R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • 4WD 3 Door [01/2005 to 09/2007] 82KW With Auto Transmission
Toyota Hiace KDH227R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • COMMUTER BUS 4WD 3 Door [01/2005 to 07/2007] With Auto Transmission

Description

Alfin Insert, With Oil Gallery Cooling
