Toyota >> Hiace >> KDH222R >> 2.5 Litre 4 Cyl 2KD-FTV DOHC 16v >> Commuter BUS KDH222 03/2005 - 10/2006 2 Door Minibus >> Mackay Bottom Radiator Lower Hose Fits Toyota Hiace 3.0L Diesel Turbo KDH223R

Mackay Bottom Radiator Lower Hose Fits Toyota Hiace 3.0L Diesel Turbo KDH223R Fits Toyota Hiace KDH222R Commuter BUS KDH222 Minibus [03/2005 to 10/2006] (2.5L 2KD-FTV 4 Cyl DOHC I/C Turbo CRD)

Part
Thumbnail
Thumbnail
Mackay logo

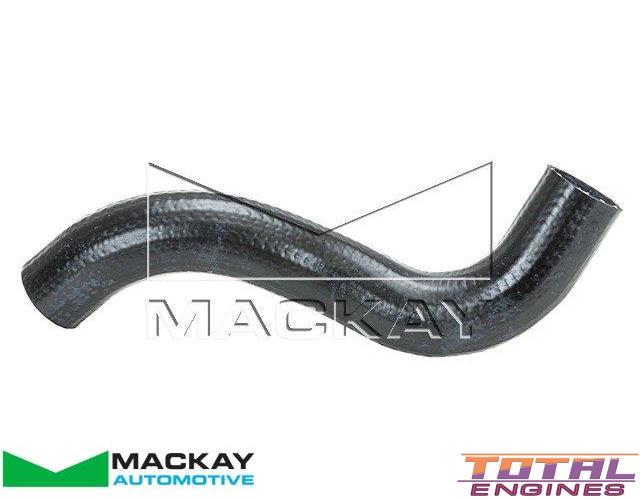

Mackay Bottom Radiator Lower Hose Fits Toyota Hiace 3.0L Diesel Turbo KDH223R

Fitment Information:

Primary Radiator Engine Side - Pipe To Water Inlet Position: Lower

$17.31

Specifications
Reference OE/OEM Number: 16574-30020
Product Type: Radiator Hose
Fitting Position: Lower / Bottom
Material: EPDM Rubber with Aramid/Rayon Reinforcement
Colour: Black
Hose Length: 330 mm
Inner Diameter 1: 36 mm
Inner Diameter 2: 36 mm
Temperature Rating: -40°C to 125°C
Specification Compliance: SAE J20R4 Type EC Class D-1 / Class D-2
Universal Fitment: No (Vehicle-Specific)

Tick This part will fit the following Vehicles:

Toyota Hiace KDH200R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • Slwb KDH220 RWD Commercial Van 3 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission With: Primary Radiator Engine Side - Pipe To Water Inlet
Toyota Hiace KDH220R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • KDH220 RWD Commercial Van 3 Door [01/2005 to 09/2007] 82KW With Auto Transmission With: Primary Radiator Engine Side - Pipe To Water Inlet
Toyota Hiace KDH222R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • Commuter BUS KDH222 RWD Minibus 2 Door [03/2005 to 10/2006] 80KW With Auto or Manual Transmission With: Primary Radiator Engine Side - Pipe To Water Inlet
Toyota Hiace KDH225R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • KDH225 4WD Commercial Van 3 Door [01/2005 to 09/2007] 82KW With Auto Transmission With: Primary Radiator Engine Side - Pipe To Water Inlet
Toyota Hiace KDH227R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • Commuter BUS KDH227 4WD Minibus 3 Door [01/2005 to 07/2007] With Auto Transmission With: Primary Radiator Engine Side - Pipe To Water Inlet

Description

Mackay Bottom Radiator Lower Hose – Perfect Fit for Toyota Hiace 3.0L Diesel Turbo KDH223R

Upgrade your Toyota Hiace cooling system with the Mackay CH6069 Radiator Lower Hose, engineered to provide superior reliability and performance. This genuine Mackay product is crafted in Australia to the highest ISO-certified standards, ensuring it meets and exceeds strict automotive requirements.

Key Features:

  • Premium Quality: Made from heat- and ozone-resistant EPDM rubber specially formulated to resist electrochemical degradation (ECD).
  • Durable Reinforcement: Embedded Aramid/Rayon lockstitch reinforcement maintains shape and prevents kinking even under high engine pressure.
  • Extreme Temperature Tolerance: Operates reliably in coolant environments from -40°C up to 125°C.
  • OE Replacement: Direct fit replacement for Toyota Hiace 3.0L Diesel Turbo KDH223R (OE number 16574-30020), designed for the lower radiator hose position (pipe to water inlet).
  • Exact Fit for Specific Models: Tailored for Toyota Hiace KDH200R 2.5L Slwb KDH220 80kw with primary radiator engine side lower hose position. Important: Not compatible with KDH200R 2.5L 82kw or LWB KDH200 75kw models.

Specifications:

  • Hose Length: 330mm
  • Inner Diameter: 36mm (both ends)
  • Specification Compliance: SAE J20R4 Type EC Class D-1 and D-2
  • Colour: Black
  • Universal Fitment: No – vehicle-specific application only

Why Choose Mackay?

With over 85 years as an iconic Australian manufacturer, Mackay’s dedication to uncompromising quality and automotive excellence shines through every product. From the first Australian-made FX Holden to today’s advanced vehicle parts, Mackay is trusted worldwide for durability, precision, and performance.

Ensure your Toyota Hiace stays cool and runs smoothly — order the Mackay Bottom Radiator Lower Hose today for a perfect, long-lasting fit!
