Toyota >> Hiace >> KDH223R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> Commuter BUS KDH223 11/2006 - 09/2010 2 Door Minibus >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace KDH223R Commuter BUS KDH223 Minibus [11/2006 to 09/2010] (3.0L 1KD-FTV 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings 8.4mm To Piston Crown

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.60mm, -8.40mm, -17.50mm
Combustion Bowl OD: 53.00mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-STD
Size: Pistons Only- Does not Include Rings 8.4mm To Piston Crown

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • COMMUTER BUS KDH223 RWD Minibus 2 Door [10/2010 to 01/2019] 100KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • Commuter BUS KDH223 RWD Minibus 2 Door [11/2006 to 09/2010] 80KW With Auto or Manual Transmission
  • Commuter BUS KDH223 RWD Minibus 2 Door [08/2007 to 10/2017] 101KW With Auto Transmission

Description

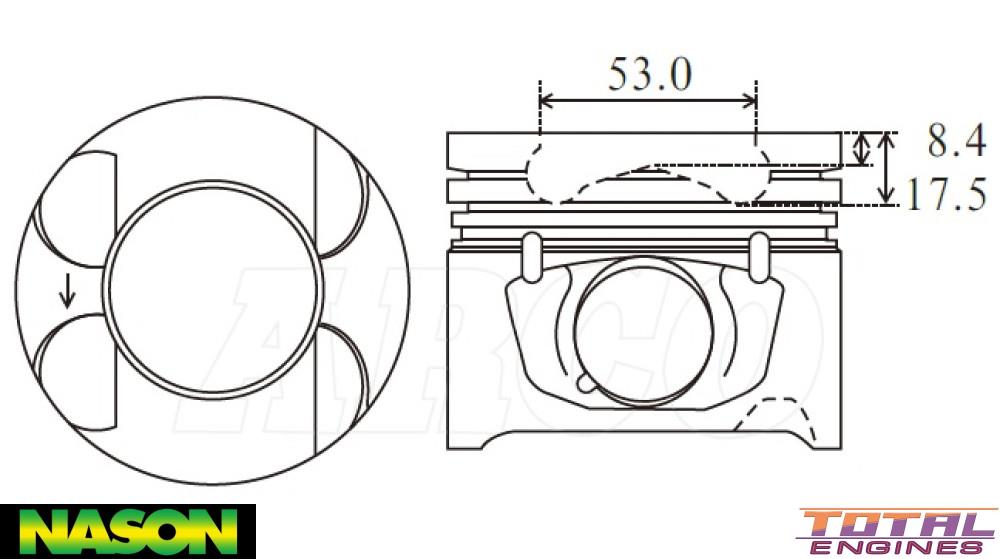

53.00mm Combustion Bowl, 8.4mm To Piston Crown

Alfin Insert, With Oil Gallery Cooling
