Toyota >> Hiace >> KZH110R >> 3.0 Litre 4 Cyl 1KZ-TE SOHC 8v >> 08/1993 - 07/2004 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace KZH110R Van [08/1993 to 07/2004] (3.0L 1KZ-TE 4 Cyl SOHC Turbo EFI)

Part
Nason logo

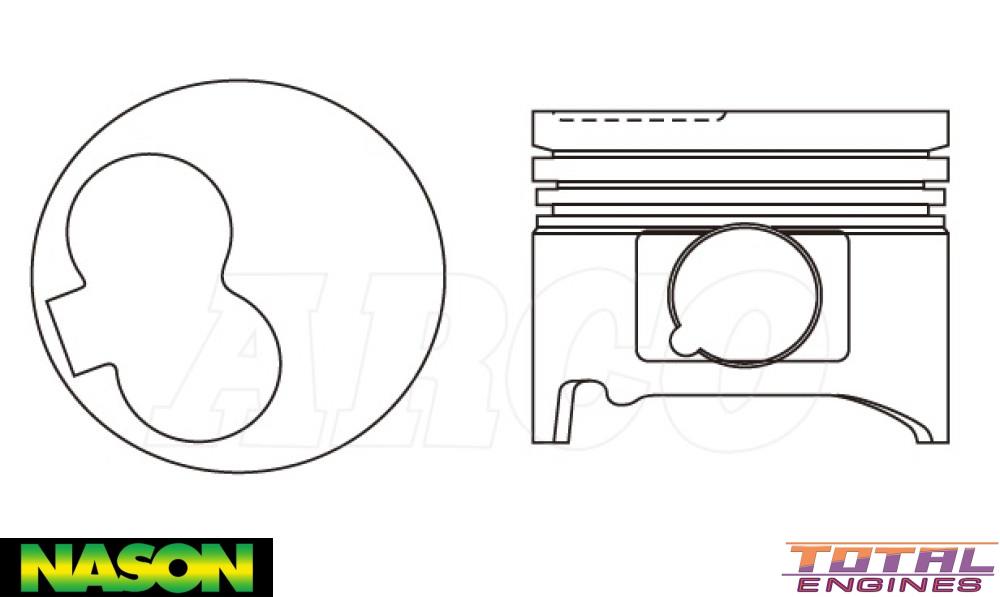

Nason Piston & pin set

Fitment Information:

Overzise - Pistons Only- Does not Include Rings Without Valve Reliefs

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 80.70mm
Comp Height: 45.70mm, -2.50mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 35937-0.50

Tick This part will fit the following Vehicles:

Toyota Hiace KZH110R (3.0 Litre 4 Cyl 1KZ-TE SOHC 8v):
  • RWD Van 3 Door [08/1993 to 07/2004] 95KW With Auto or Manual Transmission

Description

Without Valve Reliefs

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling, Anodized Head
