Toyota >> Hiace >> LH178R >> 3.0 Litre 4 Cyl 5L SOHC 8v >> 08/1998 - 08/2004 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace LH178R Van [08/1998 to 08/2004] (3.0L 5L 4 Cyl SOHC EFI)

Part
Nason logo

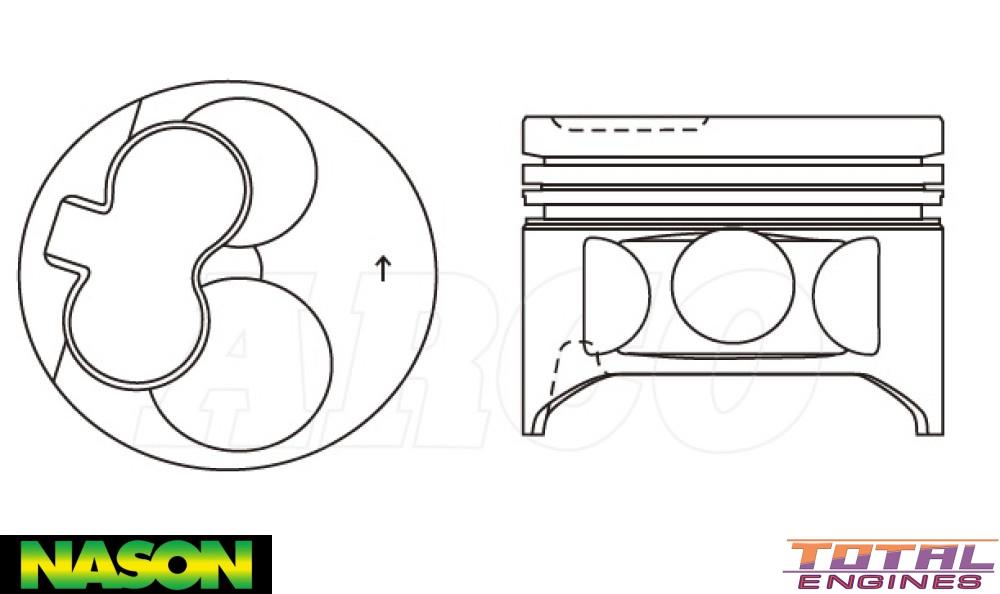

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$563.06

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 99.50mm
Size: Std
Head Type: Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type: Cast
Length: 80.30mm
Comp Height: 42.30mm, -0.90mm, -2.20mm
Pin Size: 29.00mm x 73.90mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 35929-STD

Tick This part will fit the following Vehicles:

Toyota Hiace LH162R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2004] 66KW With Auto or Manual Transmission
Toyota Hiace LH172R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • LH177 RWD Van 3 Door [10/2000 to 02/2005] 66KW With Auto or Manual Transmission
Toyota Hiace LH178R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD Van 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission
Toyota Hiace LH184R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • RWD Bus 3 Door [10/2000 to 02/2005] 66KW With Auto or Manual Transmission
Toyota Hiace LH186R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD Bus 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission
Toyota Hiace LH188R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission

Description

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling
