Toyota >> Hiace >> LH184R >> 3.0 Litre 4 Cyl 5L SOHC 8v >> 10/2000 - 02/2005 3 Door Bus >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace LH184R Bus [10/2000 to 02/2005] (3.0L 5L 4 Cyl SOHC EFI)

Part
Nason logo

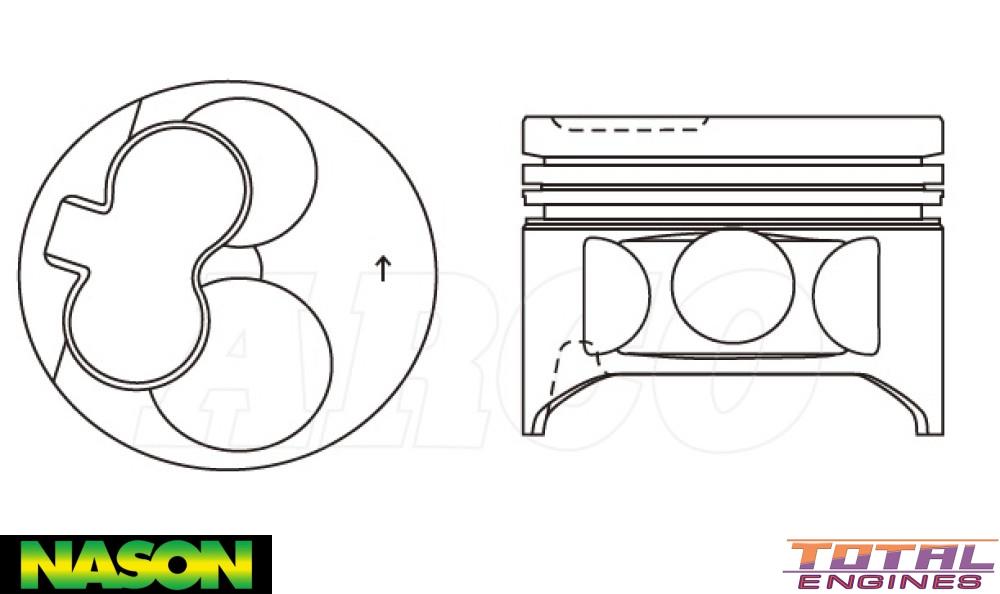

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$563.06

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 99.50mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type: Cast
Length: 80.30mm
Comp Height: 42.30mm, -0.90mm, -2.20mm
Pin Size: 29.00mm x 73.90mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 35929-0.50

Tick This part will fit the following Vehicles:

Toyota Hiace LH162R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2004] 66KW With Auto or Manual Transmission
Toyota Hiace LH172R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • LH177 RWD Van 3 Door [10/2000 to 02/2005] 66KW With Auto or Manual Transmission
Toyota Hiace LH178R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD Van 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission
Toyota Hiace LH184R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • RWD Bus 3 Door [10/2000 to 02/2005] 66KW With Auto or Manual Transmission
Toyota Hiace LH186R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD Bus 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission
Toyota Hiace LH188R (3.0 Litre 4 Cyl 5L SOHC 8v):
  • 4WD 3 Door [08/1998 to 08/2004] With Auto or Manual Transmission

Description

Nason Piston & Pin Set 0.50 Oversize - Upgrade Your Ride!

Revitalize your engine with the Nason Piston & Pin Set, 0.50 Oversize—a premium choice for enhancing performance and durability in your Toyota vehicles. This high-quality piston set is specifically engineered to provide reliable operation, excellent thermal efficiency, and reduced engine friction, ensuring your ride remains powerful and responsive.

Product Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Set Includes: 4 x Pistons & Pins

Designed with a sophisticated Clover Leaf Combustion Relief and dual Valve Reliefs, this piston set maximizes combustion efficiency, allowing for better overall performance. The innovative Alfin Insert with an oil gallery cooling design ensures your engine components stay cool under pressure, ultimately prolonging the life of your engine.

Specifications:

  • Standard Bore Size: 99.50mm
  • Oversize Size: 0.50mm
  • Piston Type: Cast
  • Length: 80.30mm
  • Compression Height: 42.30mm, with tolerances of -0.90mm and -2.20mm
  • Pin Size: 29.00mm x 73.90mm (Full Floating)
  • Skirt Coating: None
  • Piston to Bore: See Label on Box
  • Top Ring Width: 2.00mm Half Keystone
  • 2nd Ring Width: 1.50mm
  • Oil Ring Width: 4.00mm
  • Ring Set: 35929-0.50

Compatibility:

  • Fits:
  • Toyota Hilux LN172R 3.0L LN179 Ute
  • Toyota Hilux LN172R 3.0L Ute
  • Toyota Toyoace LY162R 3.0L

Please Note: This product will NOT fit the following vehicle:

  • Toyota Hilux LN172R 3.0L LN172 Utility

Upgrade your vehicle's engine performance with the Nason Piston & Pin Set. Designed for enthusiasts and professionals alike, this set promises exceptional quality and performance you can trust. Experience smoother operation, enhanced power, and improved fuel efficiency. Don’t wait—elevate your vehicle's performance today!
