Toyota >> Hiace >> RH20R >> 1.6 Litre 4 Cyl 12R OHV 8v >> RH20 01/1976 - 11/1982 3 Door Commercial Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace RH20R RH20 Commercial Van [01/1976 to 11/1982] (1.6L 12R 4 Cyl OHV CARB)

Part
Nason logo

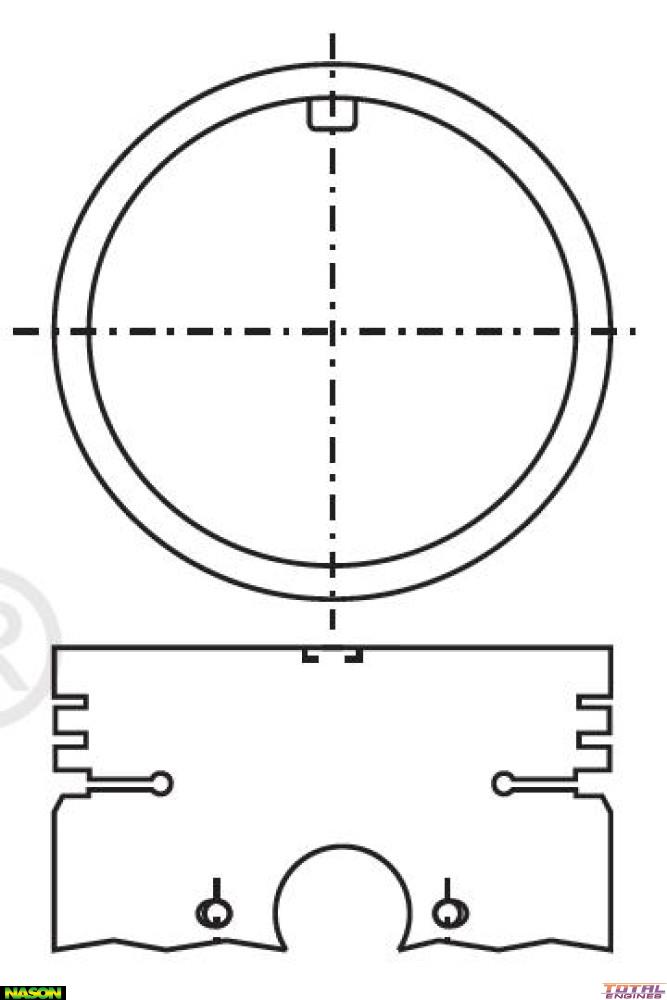

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4293 or 4293
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 20.00mm x 66.00mm
Comp Height: 39.00mm
Length: 80.00mm
Piston Type: Cast
Head Type: Flat Top
Size: 0.50mm / .020"
Std Bore Size: 80.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hiace RH11R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Van/Cab Chassis 2 Door [01/1970 to 12/1985] 48KW With Transmission
Toyota Hiace RH11V (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Commercial Van 3 Door [01/1970 to 12/1975] 48KW With Transmission
Toyota Hiace RH16R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RH16 RWD Minibus 2 Door [01/1972 to 12/1977] With Transmission
Toyota Hiace RH20R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RH20 RWD Commercial Van 3 Door [01/1976 to 11/1982] 48KW With Transmission
Toyota Hiace RH30R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RH30 RWD Commercial Van 3 Door [01/1977 to 12/1982] With Transmission

Description

Nason, 0.50mm Oversize
