Toyota >> Hiace >> RH22R >> 2.0 Litre 4 Cyl 18R-C SOHC 8v >> 01/1980 - 10/1982 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace RH22R Van [01/1980 to 10/1982] (2.0L 18R-C 4 Cyl SOHC CARB)

Part
Nason logo

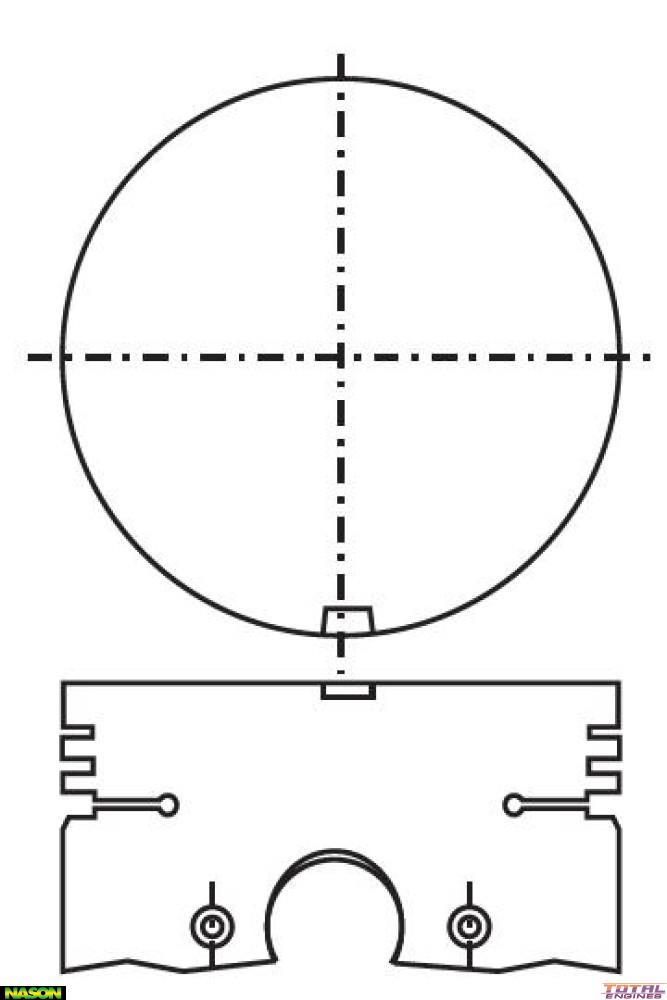

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Size: 1.00mm / .040"
Head Type: Flat Top
Piston Type: Cast
Length: 84.80mm
Comp Height: 39.60mm
Pin Size: 22.00mm x 75.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C6886 or 6886
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hiace RH22R (2.0 Litre 4 Cyl 18R-C SOHC 8v):
  • RWD Van 3 Door [01/1980 to 10/1982] With Manual Transmission
Toyota Hiace RH32R (2.0 Litre 4 Cyl 18R-C SOHC 8v):
  • RWD Van 3 Door [01/1979 to 12/1983] With Manual Transmission
Toyota Hiace RH42RB (2.0 Litre 4 Cyl 18R-C SOHC 8v):
  • RWD Bus 2 Door [02/1977 to 10/1982] With Manual Transmission

Description

Nason, 1.00mm Oversize
