Toyota >> Hiace >> RH30R >> 1.6 Litre 4 Cyl 12R OHV 8v >> 01/1977 - 12/1982 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace RH30R Van [01/1977 to 12/1982] (1.6L 12R 4 Cyl OHV CARB)

Part
Nason logo

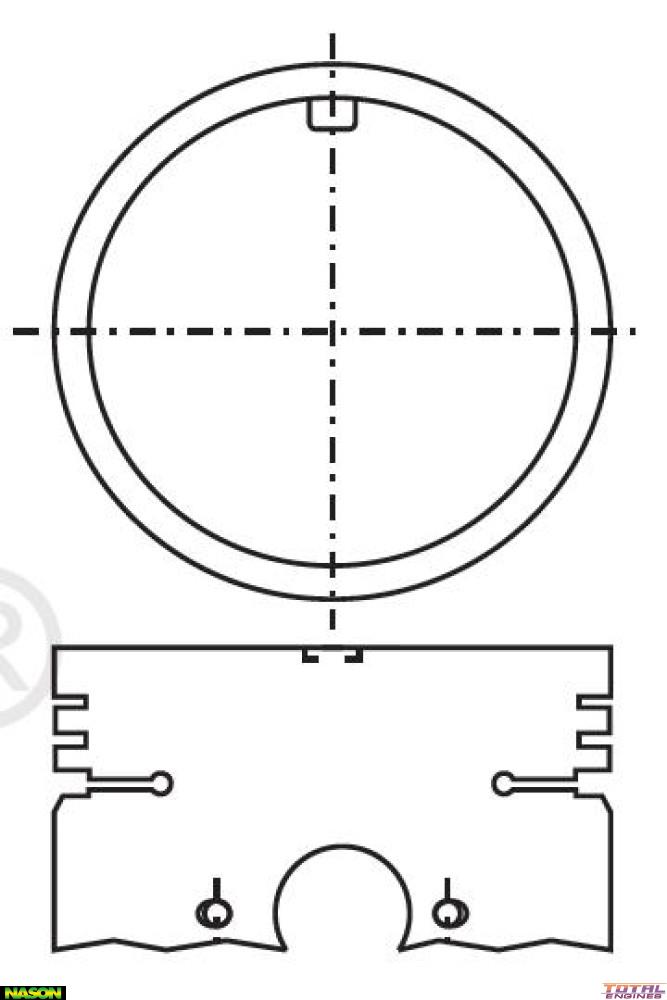

Nason Piston & pin set

Out Of Stock

Specifications
Head Type: Flat Top
Piston Type: Cast
Length: 80.00mm
Comp Height: 39.00mm
Pin Size: 20.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C4293 or 4293
Size: 0.50mm Oversize
Size: 0.50mm / .020"
Std Bore Size: 80.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hiace RH11R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Cab Chassis 2 Door [01/1970 to 12/1985] With Manual Transmission
Toyota Hiace RH11V (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Van 3 Door [01/1970 to 12/1975] 48KW With Manual Transmission
Toyota Hiace RH16R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Bus 2 Door [01/1972 to 12/1977] With Manual Transmission
Toyota Hiace RH20R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Van 3 Door [01/1976 to 11/1982] 48KW With Manual Transmission
Toyota Hiace RH30R (1.6 Litre 4 Cyl 12R OHV 8v):
  • RWD Van 3 Door [01/1977 to 12/1982] With Manual Transmission

Description

Nason, 0.50mm Oversize
