Toyota >> Hiace >> RZH101R >> 2.4 Litre 4 Cyl 2RZ-E SOHC 8v >> 08/1989 - 08/2002 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace RZH101R Van [08/1989 to 08/2002] (2.4L 2RZ-E 4 Cyl SOHC MPFI)

Part
Nason logo

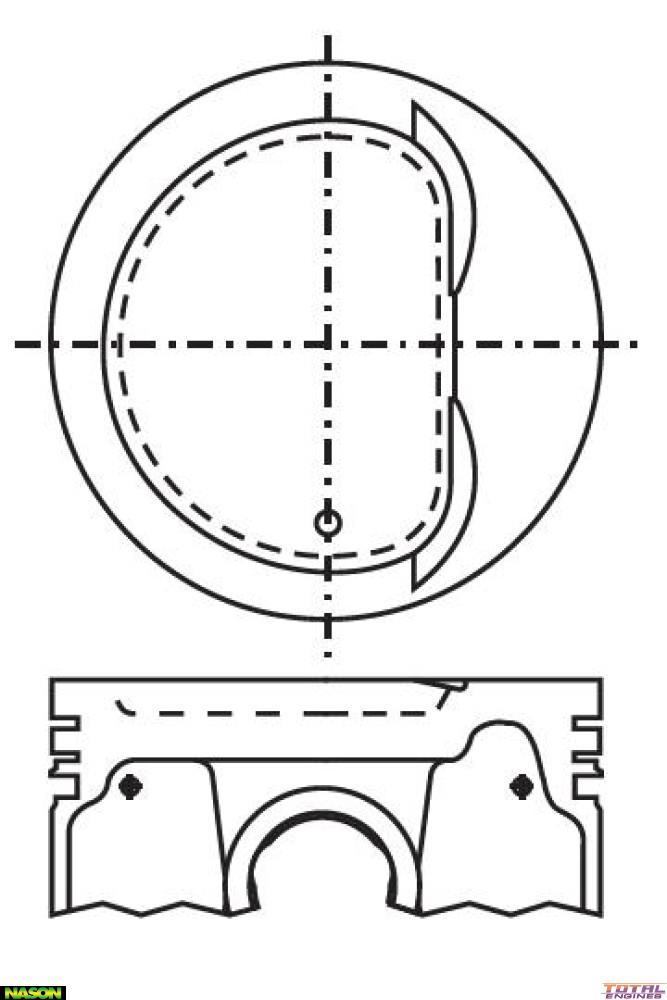

Nason Piston & Pin Set

$283.14

Specifications
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 58.10mm
Comp Height: 35.20mm - 6.00mm
Pin Size: 24.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4687 or 4687
Size: 1.00mm Oversize
Size: 1.00mm / .040"
Std Bore Size: 95.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hiace RCH22R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • SBV RWD Van 3 Door [10/1999 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH101R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1989 to 08/2002] 89KW With Auto Transmission
Toyota Hiace RZH103R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH106 RWD Van 3 Door [09/1998 to 08/2004] 85KW With Auto or Manual Transmission
  • SBV RCH12 RWD Van 3 Door [10/1995 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH113R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH111 RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH125R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2003] With Auto Transmission
  • RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH133R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD 3 Door [08/1995 to 07/1999] With Auto Transmission

Description

Nason Piston & Pin Set - 1.00 Oversize for Toyota Hiace

Upgrade Your Engine's Performance with Nason

Elevate the performance of your Toyota Hiace with the premium Nason Piston & Pin Set, specially crafted for your 2.4L engines (RZH125R and RZH133R). Designed for durability and superior performance, this 1.00mm (0.040\") oversize piston set is the ideal solution to maintain or boost your vehicle's efficiency and power.

Key Features:

  • Complete Piston Set: Includes 4 high-quality pistons and pins, ensuring you have everything you need for a comprehensive engine rebuild.
  • Specifications:
  • Standard Bore Size: 95.00mm
  • Piston Type: Cast for enhanced strength and reliability
  • Head Type: Dish top design with 2 valve reliefs for optimal airflow and combustion efficiency
  • Length: 58.10mm
  • Compression Height: 35.20mm - 6.00mm
  • Pin Size: 24.00mm x 70.00mm, featuring a full floating design for smooth operation
  • Top Ring Width: 1.75mm | 2nd Ring Width: 1.50mm | Oil Ring Width: 4.00mm

Compatibility:

This Nason Piston & Pin Set is specifically engineered to fit the following Toyota Hiace models:

  • Toyota Hiace RZH125R 2.4L
  • Toyota Hiace RZH133R 2.4L

Importance of Quality:

With meticulous design and premium materials, the Nason Piston & Pin Set ensures a perfect fit and optimal engine performance. The set provides reliable operation, reduced emissions, and increased longevity for your engine. Ensure your vehicle runs like new, or enhance its capabilities with this exceptional piston kit.

Make the Smart Choice for Your Engine Overhaul

Don't compromise on quality. Choose the Nason Piston & Pin Set for reliable performance and peace of mind. Enhance your Toyota Hiace's efficiency and power today—order now and take the first step towards a rejuvenated engine!
