Toyota >> Hiace >> RZH101R >> 2.4 Litre 4 Cyl 2RZ-E SOHC 8v >> 08/1989 - 08/2002 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace RZH101R Van [08/1989 to 08/2002] (2.4L 2RZ-E 4 Cyl SOHC MPFI)

Part
Nason logo

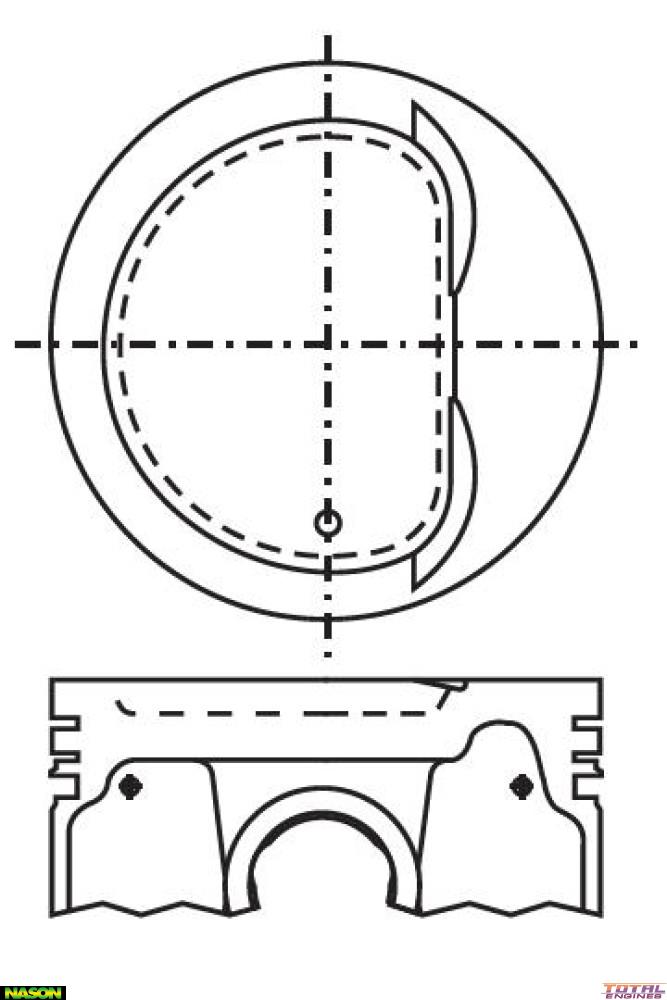

Nason Piston & Pin Set

$283.14

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 95.00mm
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 58.10mm
Comp Height: 35.20mm - 6.00mm
Pin Size: 24.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4687 or 4687

Tick This part will fit the following Vehicles:

Toyota Hiace RCH22R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • SBV RWD Van 3 Door [10/1999 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH101R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1989 to 08/2002] 89KW With Auto Transmission
Toyota Hiace RZH103R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH106 RWD Van 3 Door [09/1998 to 08/2004] 85KW With Auto or Manual Transmission
  • SBV RCH12 RWD Van 3 Door [10/1995 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH113R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH111 RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH125R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2003] With Auto Transmission
  • RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH133R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD 3 Door [08/1995 to 07/1999] With Auto Transmission

Description

Nason Piston & Pin Set - Standard Size for Toyota Hiace RZH133R 2.4L

Unlock the full potential of your Toyota Hiace RZH133R 2.4L with the premium Nason Piston & Pin Set. Designed to deliver exceptional performance and reliability, this set is an essential upgrade for any automotive enthusiast or professional mechanic looking to enhance engine integrity and longevity.

Product Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Compatibility: Specifically crafted for Toyota Hiace RZH133R 2.4L

Specifications:

  • Piston Set: Includes 4 high-quality pistons and pins, ensuring a complete overhaul for your engine.
  • Standard Bore Size: 95.00mm for perfect fitment and optimal engine performance.
  • Head Type: Dish Top design with 2 valve reliefs, promoting efficient combustion and power generation.
  • Piston Type: Crafted from durable cast material for long-lasting durability under high-stress conditions.
  • Length: 58.10mm for precise alignment and smooth operations within your engine.
  • Compression Height: 35.20mm - 6.00mm, engineered for maximum compression efficiency.
  • Pin Size: Full floating pins measuring 24.00mm x 70.00mm, ensuring reliable and smooth movement.
  • Skirt Coating: No additional coating allows for a genuine performance feel.
  • Piston to Bore: Refer to the label on the box for accurate measurements.
  • Top Ring Width: 1.75mm, engineered for optimal sealing and performance.
  • 2nd Ring Width: 1.50mm, designed to enhance oil control and efficiency.
  • Oil Ring Width: 4.00mm, ensuring effective oil management and minimizing consumption.
  • Ring Set Compatible with: 2C4687 or 4687, providing additional options for custom applications.

Why Choose Nason?

Nason is a trusted name in automotive performance, renowned for producing high-quality components that meet and exceed industry standards. With a commitment to excellence, their Piston & Pin Set is engineered for enhanced performance and reliability, making it the perfect choice for your Toyota Hiace.

Elevate Your Engine Today!

Upgrade your vehicle with the Nason Piston & Pin Set and experience improved power, stability, and efficiency in your Toyota Hiace RZH133R 2.4L. Don't settle for less—choose Nason for unmatched quality and performance. Order now and empower your engine with precision-engineered components!
