Toyota >> Hiace >> RZH103R >> 2.4 Litre 4 Cyl 2RZ-E SOHC 8v >> SBV RCH12 10/1995 - 02/2005 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace RZH103R SBV RCH12 Van [10/1995 to 02/2005] (2.4L 2RZ-E 4 Cyl SOHC MPFI)

Part
Nason logo

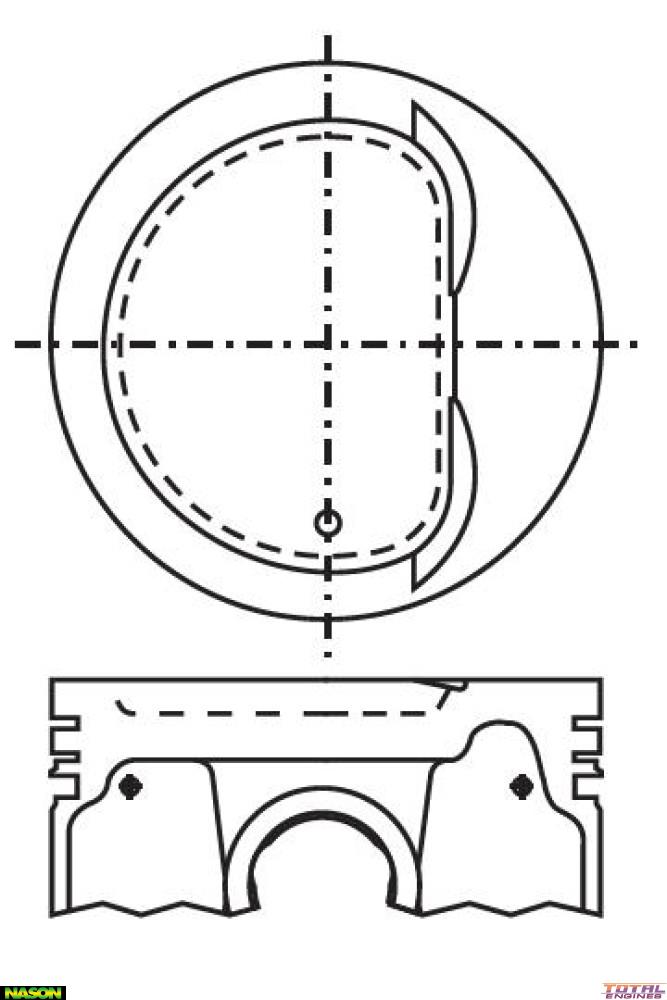

Nason Piston & pin set

$283.14

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 95.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 58.10mm
Comp Height: 35.20mm - 6.00mm
Pin Size: 24.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4687 or 4687
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hiace RCH22R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • SBV RWD Van 3 Door [10/1999 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH101R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1989 to 08/2002] 89KW With Auto Transmission
Toyota Hiace RZH103R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH106 RWD Van 3 Door [09/1998 to 08/2004] 85KW With Auto or Manual Transmission
  • SBV RCH12 RWD Van 3 Door [10/1995 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH113R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH111 RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH125R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2003] With Auto Transmission
  • RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH133R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD 3 Door [08/1995 to 07/1999] With Auto Transmission

Description

Nason, 0.50mm Oversize
