Toyota >> Hiace >> RZH113R >> 2.4 Litre 4 Cyl 2RZ-E SOHC 8v >> RZH111 09/1998 - 02/2005 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace RZH113R RZH111 Van [09/1998 to 02/2005] (2.4L 2RZ-E 4 Cyl SOHC MPFI)

Part
Nason logo

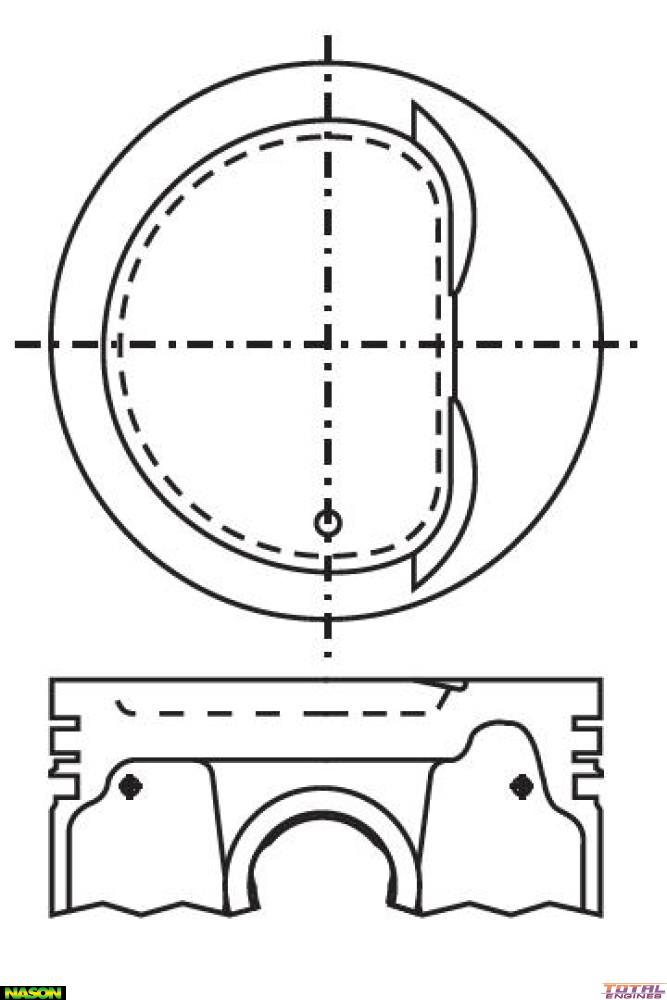

Nason Piston & pin set

$283.14

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4687 or 4687
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.75mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 24.00mm x 70.00mm
Comp Height: 35.20mm - 6.00mm
Length: 58.10mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 95.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hiace RCH22R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • SBV RWD Van 3 Door [10/1999 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH101R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1989 to 08/2002] 89KW With Auto Transmission
Toyota Hiace RZH103R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH106 RWD Van 3 Door [09/1998 to 08/2004] 85KW With Auto or Manual Transmission
  • SBV RCH12 RWD Van 3 Door [10/1995 to 02/2005] 88KW With Manual Transmission
Toyota Hiace RZH113R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RZH111 RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH125R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD Van 3 Door [08/1998 to 08/2003] With Auto Transmission
  • RWD Van 3 Door [09/1998 to 02/2005] 85KW With Auto or Manual Transmission
Toyota Hiace RZH133R (2.4 Litre 4 Cyl 2RZ-E SOHC 8v):
  • RWD 3 Door [08/1995 to 07/1999] With Auto Transmission

Description

Nason, 0.50mm Oversize
