Toyota >> Hiace >> GDH223R >> 2.8 Litre 4 Cyl 1GD-FTV DOHC 16v >> GDH223 12/2017 - Onwards 4 Door Minibus >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace GDH223R GDH223 Minibus [12/2017 Onwards] (2.8L 1GD-FTV 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Ring Set: 36050-0.50
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 2.00mm Half Keystone
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 31.00mm x 67.00mm

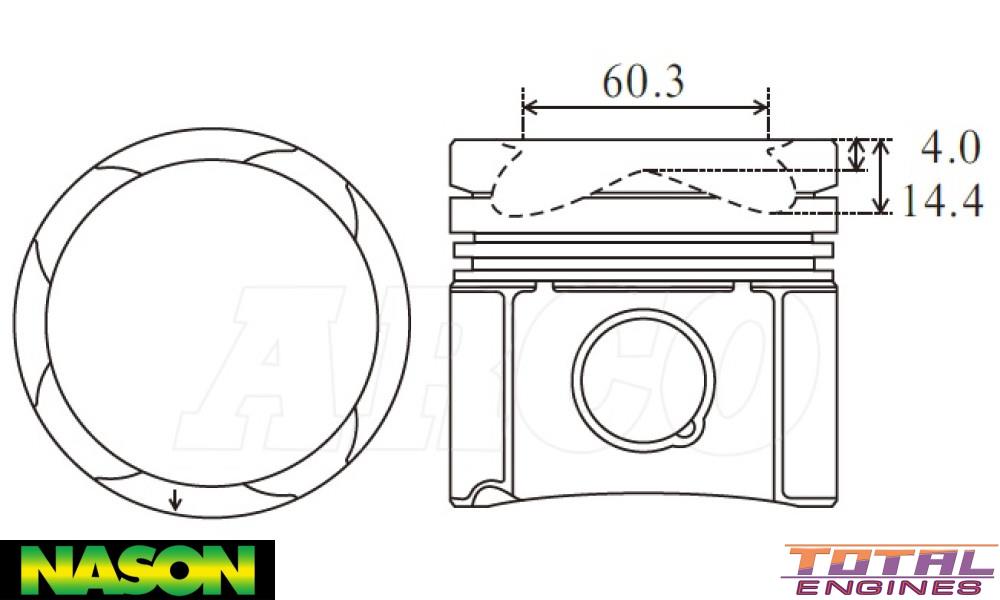

Combustion Bowl OD: 60.30mm
Comp Height: 53.20mm, -4.00mm, -14.40mm
Length: 78.20mm
Piston Type: Cast
Head Type: Flat Top With Combustion Bowl & 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 92.00mm
Piston Set: 4 x Pistons & Pins

Tick This part will fit the following Vehicles:

Toyota Hiace GDH223R (2.8 Litre 4 Cyl 1GD-FTV DOHC 16v):
  • GDH223 RWD Minibus 4 Door [12/2017 Onwards] 110KW With Auto Transmission

Description

Alfin, Oil Gallery Cooling
