Toyota >> Hiace >> KDH211R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> 09/2007 - 10/2017 3 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hiace KDH211R [09/2007 to 10/2017] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings 4.0mm To Piston Crown

$756.11

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 77.60mm
Comp Height: 49.60mm, -4.00mm, -16.40mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-0.50
Size: Pistons Only- Does not Include Rings 4.0mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hiace KDH201R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD Van 3 Door [08/2007 Onwards] 100KW With Auto or Manual Transmission
  • LWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD Van 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH206R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • 4WD 3 Door [08/2007 Onwards] 101KW With Auto or Manual Transmission
Toyota Hiace KDH211R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [09/2007 to 10/2017] With Auto Transmission
Toyota Hiace KDH221R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • RWD 3 Door [08/2007 Onwards] 101KW With Auto Transmission
  • SLWB RWD Van 3 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
Toyota Hiace KDH223R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • Commuter Bus RWD Bus 2 Door [11/2006 to 01/2019] 80KW With Auto or Manual Transmission
  • Commuter Bus RWD Bus 2 Door [08/2007 Onwards] 101KW With Auto Transmission

Description

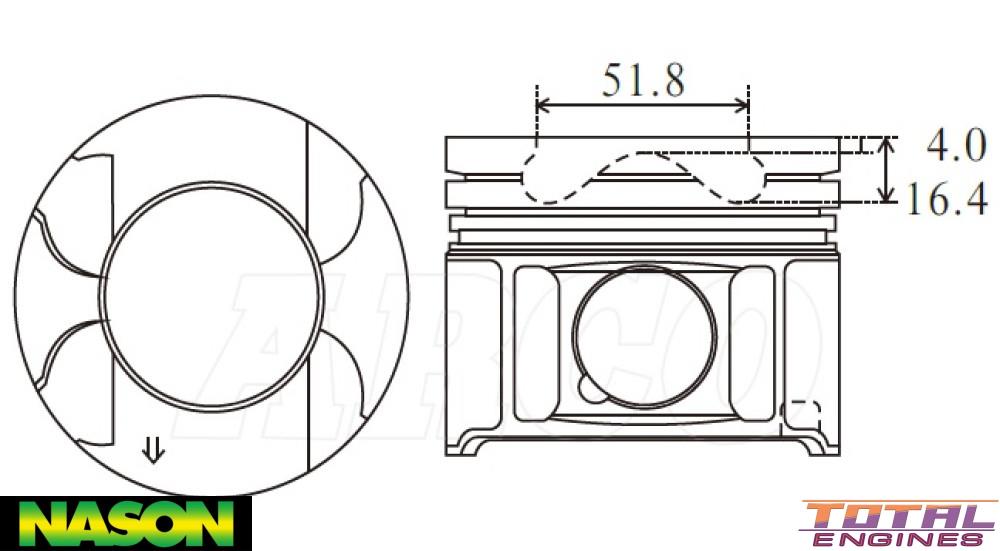

51.80mm Combustion Bowl, 4.0mm To Piston Crown

Alfin Insert, With Oil Gallery Cooling, Anodized Head
