Toyota >> Hilux >> GGN125R >> 4.0 Litre V6 1GR-FE DOHC 24v >> SR5 07/2015 - 09/2017 4 Door Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux GGN125R SR5 Wellside [07/2015 to 09/2017] (4.0L 1GR-FE V6 DOHC VVT MPFI)

Part
Nason logo

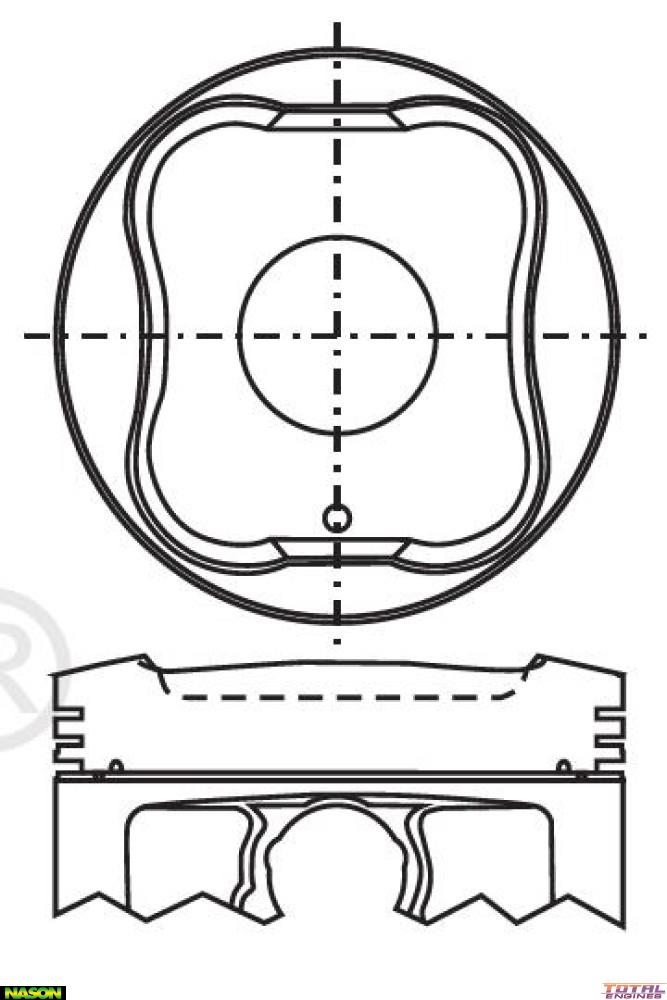

Nason Piston & Pin Set

$514.80

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: 1.00mm / .040"
Head Type: Dish Top
Piston Type: Cast
Length: 56.60mm
Comp Height: 32.50mm - 3.50mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5151
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hilux GGN125R (4.0 Litre V6 1GR-FE DOHC 24v):
  • SR 4WD Wellside 4 Door [07/2015 to 09/2017] 175KW With Auto Transmission
  • SR5 4WD Wellside 4 Door [07/2015 to 09/2017] 175KW With Auto Transmission

Description

Nason Piston & Pin Set - 1.00 Oversize

Revitalize your Toyota Landcruiser's performance with the premium Nason Piston & Pin Set, tailored specifically for GRJ78, GRJ79, GRJ120, GGN15, and GGN25 models. Designed with precision engineering, this piston set enhances efficiency and longevity, making it the perfect choice for those serious about maintaining their vehicle's power and reliability.

Product Features:

  • Compatibility: Perfectly fits Toyota Landcruiser models including GRJ120R, GRJ76R, and GRJ79R with a robust 4.0L engine.
  • Superior Build Quality: Made of high-quality cast material, each piston boasts an anodized head, top, and second ring lands to enhance durability and reduce wear.
  • Optimal Performance: With a bore size of 94.00mm and a 1.00mm (.040\") oversize, this piston set is engineered to provide superior compression and efficient combustion.
  • Precision Fit: Each set contains 6 pistons and pins, thoughtfully designed with a dish top head type for optimal airflow and combustion efficiency.
  • Floating Pins: The full-floating pin type (22.00mm x 62.00mm) ensures smooth operation, while the skirt coating reduces friction, promoting longevity and performance.
  • Quality Rings: Accompanied by a reliable ring set (2C5151), including 1.20mm top and second rings, along with a 2.00mm oil ring for enhanced sealing and reduced oil consumption.
  • Compatibility with OEM Specs: Designed to fit OEM dimensions and specifications, ensuring a straightforward replacement process.

Specifications:

  • Piston Length: 56.60mm
  • Compression Height: 32.50mm - 3.50mm
  • Piston to Bore Clearance: Refer to the label on the box for precise measurements
  • Top Ring Width: 1.20mm
  • 2nd Ring Width: 1.20mm
  • Oil Ring Width: 2.00mm

Upgrade your engine's performance with the Nason Piston & Pin Set – 1.00 Oversize to experience improved horsepower, torque, and overall engine efficiency. Don’t compromise on quality; choose Nason for reliability and performance that stands the test of time. Order now and keep your Toyota Landcruiser running at its best!
