Toyota >> Hilux >> GGN25R >> 4.0 Litre V6 1GR-FE DOHC 24v >> SR 03/2005 - 08/2011 2 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux GGN25R SR Cab Chassis [03/2005 to 08/2011] (4.0L 1GR-FE V6 DOHC VVT MPFI)

Part
Nason logo

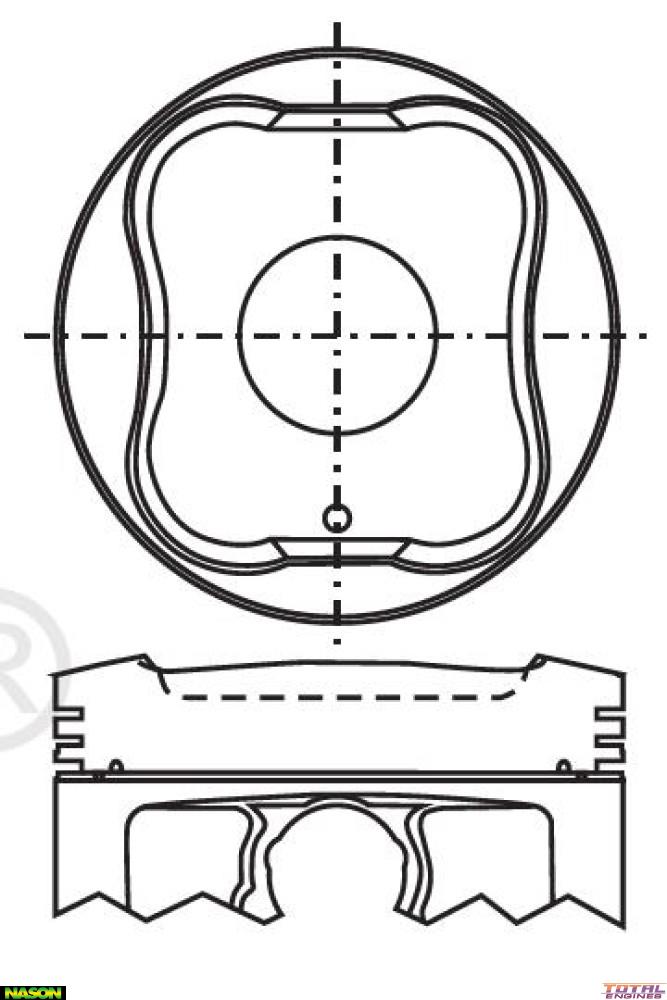

Nason Piston & pin set

$514.80

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: 1.00mm / .040"
Head Type: Dish Top
Piston Type: Cast
Length: 56.60mm
Comp Height: 32.50mm - 3.50mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5151
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hilux GGN25R (4.0 Litre V6 1GR-FE DOHC 24v):
  • 4WD Wells 4 Door [01/2005 to 12/2007] 225KW With Auto or Manual Transmission
  • 4WD Wells 4 Door [01/2005 to 12/2007] 225KW With Auto or Manual Transmission
  • SR 4WD Cab Chassis 2 Door [03/2005 to 08/2011] 175KW With Auto or Manual Transmission
  • SR 4WD Wellside 4 Door [03/2005 to 01/2014] 175KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 09/2015] 175KW With Auto or Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2011] 175KW With Manual Transmission

Description

Nason, 1.00mm Oversize
