Toyota >> Hilux >> KUN26R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> SR5 Extra CAB 08/2006 - 09/2015 2 Door Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux KUN26R SR5 Extra CAB Wellside [08/2006 to 09/2015] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

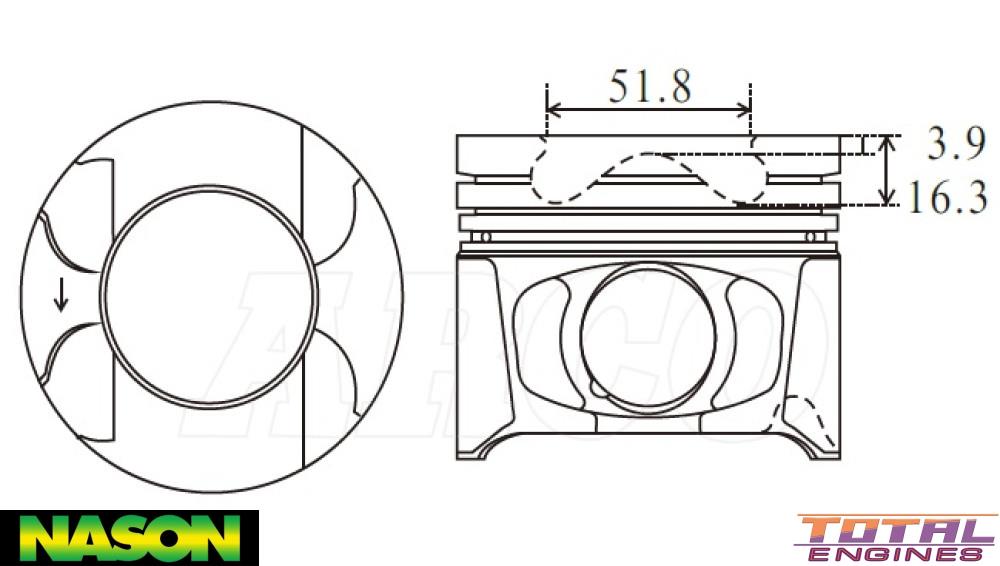

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Overzise 1.00mm - Pistons Only- Does not Include Rings 3.9mm To Piston Crown

$720.72

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 1.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.60mm, -3.90mm, -16.30mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-1.00
Size: Overzise 1.00mm
Size: Pistons Only- Does not Include Rings 3.9mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hilux KUN26R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • SR 4WD Cab Chassis 2 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR 4WD Ute 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission
  • SR, Workmate 4WD Cab Chassis 2 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR, Workmate 4WD Ute 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission

Description

Nason Piston & Pin Set 1.00 Oversize - Performance Meets Precision

Elevate your Toyota Landcruiser with the Nason Piston & Pin Set 1.00 Oversize, expertly designed to enhance your engine's performance and reliability. Crafted from high-quality materials, this piston set is the perfect upgrade for drivers seeking to enhance the efficiency of their SUV's engine.

Product Features:

  • Precision Engineering: Each piston features a combustion bowl with a diameter of 51.80mm and 4 valve reliefs, ensuring optimal combustion efficiency and power output.
  • Durable Design: Constructed with cast aluminum, these pistons are built to withstand the rigors of demanding driving conditions, while the skirt coating provides additional protection against wear and friction.
  • Cool Operation: The innovative Alfin insert design with an oil gallery cooling system helps manage engine heat, promoting longevity and reliability.
  • Perfect Fit: Designed specifically for the Toyota Landcruiser KDJ150R 3.0L SUV (not compatible with any other models), this set comes with 4 pistons and pins, ensuring a complete overhaul of your engine’s worn components.

Specifications:

  • Bore Size: Standard 96.00mm; Oversize 1.00mm
  • Piston Length: 78.50mm
  • Compression Height: 49.60mm, with variations of -3.90mm and -16.30mm
  • Pin Size: 34.00mm x 73.00mm (full floating pin type)
  • Ring Set: 35987-1.00 (please note that this set does not include piston rings, which should be purchased separately)
  • Ring Widths: Top ring at 2.00mm (half keystone), second ring at 1.50mm, and oil ring at 3.00mm.

Important Compatibility Notice:

This piston and pin set is designed specifically for the Toyota Landcruiser KDJ150R 3.0L SUV. It WILL NOT fit other vehicle models, including the 3.0L version of the same vehicle.

Upgrade your engine today with the Nason Piston & Pin Set 1.00 Oversize – where performance meets precision and reliability for your driving adventures. Order now and experience the difference with every mile!
