Toyota >> Hilux >> KUN26R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> SR5 Extra CAB 08/2006 - 09/2015 2 Door Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux KUN26R SR5 Extra CAB Wellside [08/2006 to 09/2015] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings 3.90mm To Piston Crown

$720.72

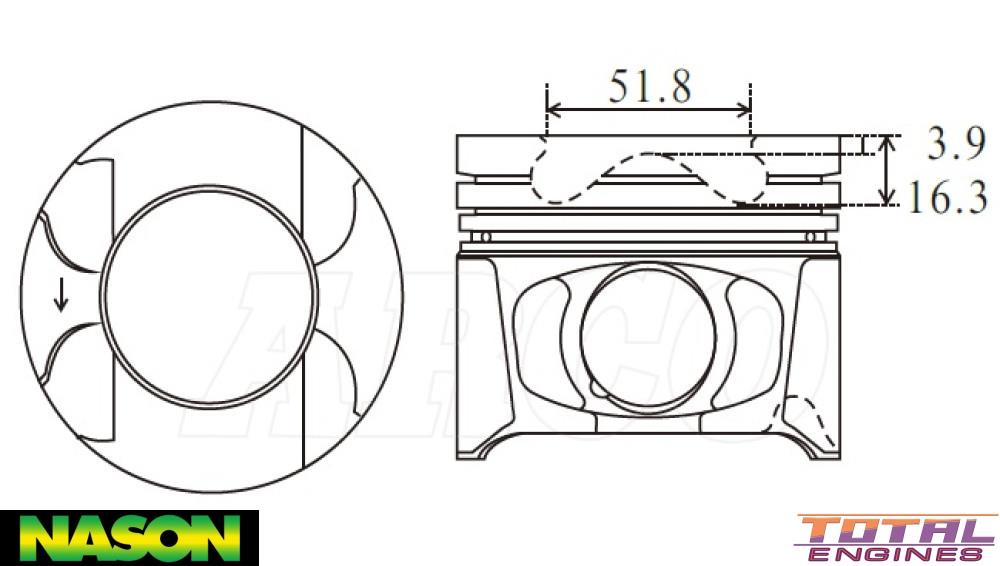

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.60mm, -3.90mm, -16.30mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-STD
Size: Pistons Only- Does not Include Rings 3.90mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hilux KUN26R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • SR 4WD Cab Chassis 2 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR 4WD Ute 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission
  • SR, Workmate 4WD Cab Chassis 2 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR, Workmate 4WD Ute 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission

Description

Nason Piston & Pin Set STD Size – Unleash Your Engine's Potential!

Brand: Nason

Category: Cylinder Block

Revitalize your Toyota Landcruiser KDJ150R 3.0L SUV with the premium Nason Piston & Pin Set. Designed for precision and performance, this set will help your engine achieve optimal efficiency and power, making it an essential upgrade for any serious off-road enthusiast or daily driver.

Key Features:

  • Superior Craftsmanship: Each piston is cast with precision, ensuring durability and reliability under demanding conditions. The Alfin insert enhances heat dissipation, while the innovative oil gallery cooling minimizes wear during operation.
  • Tailored Fit: This piston set is specifically engineered for the Toyota Landcruiser KDJ150R 3.0L SUV. Please note that it WILL NOT fit other models, such as the KDJ150R 3.0L variant. Ensure compatibility for peak performance!
  • Optimal Specifications:
  • Bore Size: Standard 96.00mm
  • Combustion Bowl: 51.80mm diameter
  • Piston Length: 78.50mm
  • Compression Height: 49.60mm
  • Pin Size: 34.00mm x 73.00mm (Full Floating)
  • Piston to Bore: Refer to the label on the box
  • Skirt Coating: Enhanced for durability and performance
  • Ring Details: This set includes 4 pistons and pins only. Please note that it does not include piston rings. Top ring width is 2.00mm (Half Keystone), second ring width is 1.50mm, and the oil ring width is 3.00mm. Compatible with Ring Set 35987-STD.

Upgrade Your Ride: Whether you’re tackling tough terrains or cruising through city streets, the Nason Piston & Pin Set provides the quality and performance you need. Don’t miss the opportunity to enhance your engine’s responsiveness and longevity.

Warning: Ensure compatibility with your vehicle. This product will NOT FIT the Toyota Landcruiser KDJ150R 3.0L, and purchasing without verifying fitment may result in fitting issues.

Unlock the full potential of your Toyota Landcruiser and invest in the Nason Piston & Pin Set today! Experience the perfect blend of durability, performance, and precision engineering.
