Toyota >> Hilux >> KUN26R >> 3.0 Litre 4 Cyl 1KD-FTV DOHC 16v >> SR5 08/2006 - 09/2015 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux KUN26R SR5 Wellside [08/2006 to 09/2015] (3.0L 1KD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

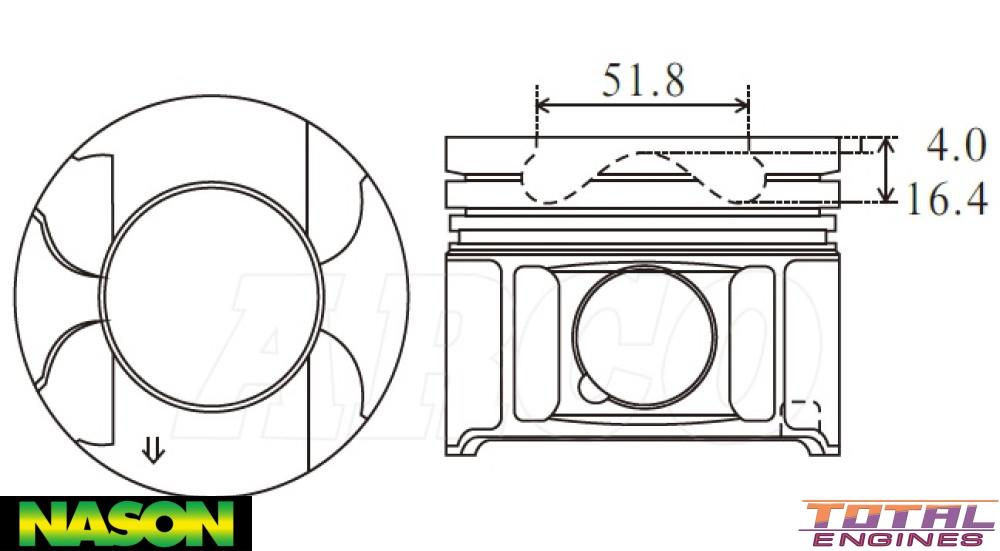

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings 4.0mm To Piston Crown

$756.11

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 1.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 77.60mm
Comp Height: 49.60mm, -4.00mm, -16.40mm
Combustion Bowl OD: 51.80mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35987-1.00
Size: Oversize 1.00mm
Size: Pistons Only- Does not Include Rings 4.0mm To Piston Crown

Tick This part will fit the following Vehicles:

Toyota Hilux KUN26R (3.0 Litre 4 Cyl 1KD-FTV DOHC 16v):
  • SR 4WD Cab Chassis 2 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR 4WD Ute 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission
  • SR, Workmate 4WD Cab Chassis 2 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR, Workmate 4WD Ute 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [03/2005 to 08/2006] 120KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [08/2006 to 09/2015] 126KW With Auto or Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [03/2005 to 08/2006] 120KW With Manual Transmission
  • SR5 Extra CAB 4WD Wellside 2 Door [08/2006 to 09/2015] 126KW With Manual Transmission

Description

51.80mm Combustion Bowl, 4.0mm To Piston Crown

Alfin Insert, With Oil Gallery Cooling, Anodized Head
