Toyota >> Hilux >> KZN165R >> 3.0 Litre 4 Cyl 1KZ-TE SOHC 8v >> SR5 12/1999 - 10/2000 4 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux KZN165R SR5 Ute [12/1999 to 10/2000] (3.0L 1KZ-TE 4 Cyl SOHC Turbo EFI)

Part
Nason logo

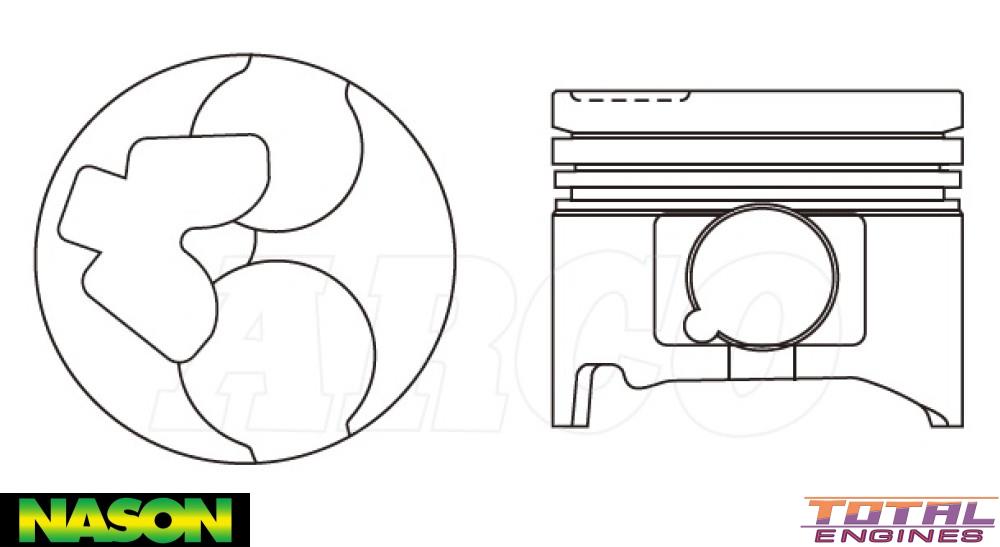

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings With Valve Reliefs

$675.68

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type: Cast
Length: 80.70mm
Comp Height: 45.80mm, -0.90mm, -2.40mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 35937-0.50

Tick This part will fit the following Vehicles:

Toyota Hilux KZN165R (3.0 Litre 4 Cyl 1KZ-TE SOHC 8v):
  • 4WD Cab Chassis 2 Door [11/2000 to 04/2005] 85KW With Manual Transmission
  • 4WD Ute 4 Door [11/2000 to 04/2005] 85KW With Manual Transmission
  • SR5 4WD Cab Chassis 2 Door [12/1999 to 10/2000] 85KW With Manual Transmission
  • SR5 4WD Ute 4 Door [12/1999 to 10/2000] 85KW With Manual Transmission
  • SR5 4WD Ute 4 Door [11/2000 to 04/2005] 85KW With Manual Transmission

Description

With Valve Reliefs

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling, Anodized Head
