Toyota >> Hilux >> KZN165R >> 3.0 Litre 4 Cyl 1KZ-TE SOHC 8v >> 11/2000 - 04/2005 2 Door Cab Chassis >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux KZN165R Cab Chassis [11/2000 to 04/2005] (3.0L 1KZ-TE 4 Cyl SOHC Turbo EFI)

Part
Nason logo

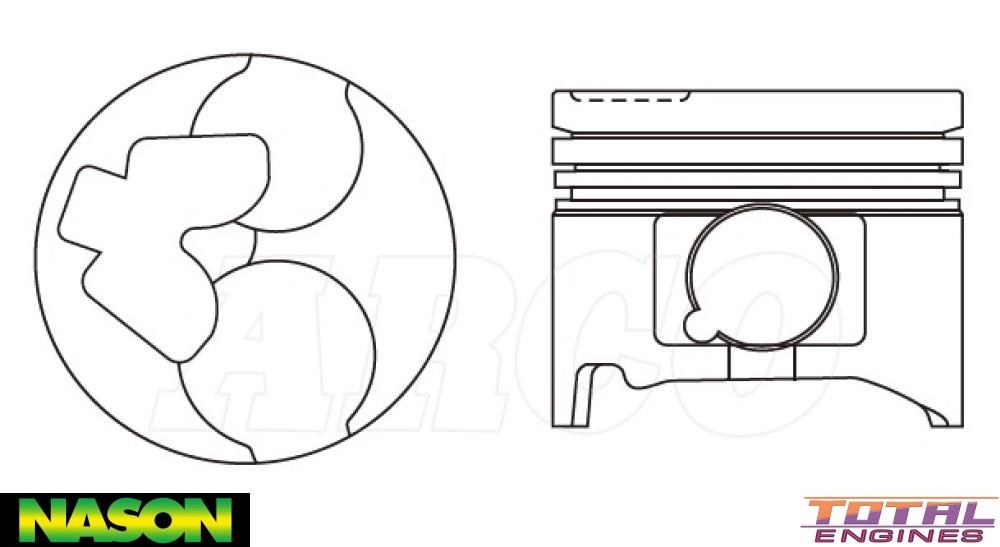

Nason Piston & Pin Set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings With Valve Reliefs

$675.68

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 1.00mm
Head Type: Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type: Cast
Length: 80.70mm
Comp Height: 45.80mm, -0.90mm, -2.40mm
Pin Size: 34.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 35937-1.00
Size: Oversize 1.00mm

Tick This part will fit the following Vehicles:

Toyota Hilux KZN165R (3.0 Litre 4 Cyl 1KZ-TE SOHC 8v):
  • 4WD Cab Chassis 2 Door [11/2000 to 04/2005] 85KW With Manual Transmission With: With Valve Reliefs
  • 4WD Ute 4 Door [11/2000 to 04/2005] 85KW With Manual Transmission With: With Valve Reliefs
  • SR5 4WD Cab Chassis 2 Door [12/1999 to 10/2000] 85KW With Manual Transmission With: With Valve Reliefs
  • SR5 4WD Ute 4 Door [12/1999 to 10/2000] 85KW With Manual Transmission With: With Valve Reliefs
  • SR5 4WD Ute 4 Door [11/2000 to 04/2005] 85KW With Manual Transmission With: With Valve Reliefs

Description

Nason Piston & Pin Set 1.00 Oversize - Upgrade Your Toyota Performance

Unlock the true potential of your Toyota Land Cruiser with the Nason Piston & Pin Set 1.00 Oversize. Specifically engineered for optimal performance and efficiency, this high-quality piston and pin combination is a must-have for any serious off-road enthusiast or driver looking to enhance their engine's capabilities.

Key Features:

  • Designed for Enhanced Performance: The clover leaf combustion relief design, coupled with strategically integrated valve reliefs, ensures a smoother combustion process and improved horsepower.
  • Alfin Insert with Oil Gallery Cooling: This innovative feature provides superior cooling to your engine, promoting longevity and reliability, even during the toughest drives.
  • Anodized Head: The anodized head not only looks great but also enhances durability and resistance against temperature fluctuations and wear.
  • Manufactured with Precision: Each piston is crafted from high-quality cast material, designed to endure the rigorous demands of your 3.0L engine.

Specifications:

  • Piston Set Includes: 4 x Pistons & Pins
  • STD Bore Size: 96.00mm
  • Oversize Size: 1.00mm
  • Head Type: Clover Leaf Combustion Relief with 2 Valve Reliefs
  • Piston Length: 80.70mm
  • Comp Height: 45.80mm, -0.90mm, -2.40mm
  • Pin Size: 34.00mm x 73.00mm
  • Pin Type: Full Floating
  • Top Ring Width: 2.00mm Half Keystone
  • 2nd Ring Width: 2.00mm
  • Oil Ring Width: 3.00mm
  • Ring Set Part Number: 35937-1.00

Important Fitment Information:

This Nason Piston & Pin Set is compatible with the following Toyota Land Cruiser Prado models:

  • KZJ71R 3.0L (With Valve Reliefs)
  • KZJ78R 3.0L (With Valve Reliefs)
  • KZJ90R 3.0L (With Valve Reliefs)

Upgrade Your Ride Today!

Enhance your vehicle's performance and reliability with the Nason Piston & Pin Set 1.00 Oversize. Whether you're navigating city streets or tackling rough terrains, this piston and pin set will provide the strength and performance you need. Don’t settle for anything less than the best – invest in Nason, and experience the difference it makes in your ride. Order now and take a step towards a more powerful driving experience!
