Toyota >> Hilux >> LN106R >> 2.8 Litre 4 Cyl 3L SOHC 8v >> 09/1988 - 08/1997 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux LN106R Ute [09/1988 to 08/1997] (2.8L 3L 4 Cyl SOHC Diesel Inj)

Part
Nason logo

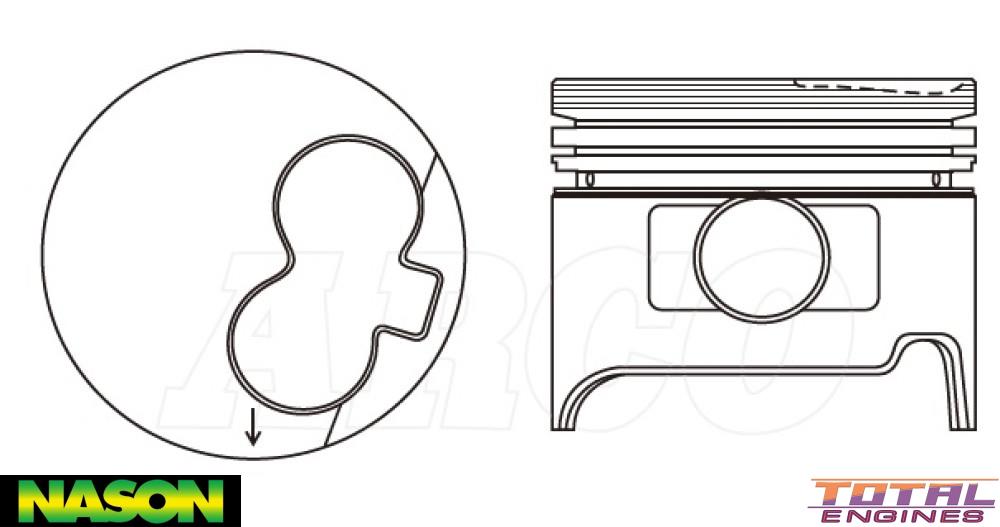

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$392.54

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: Std
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 80.30mm
Comp Height: 42.30mm, -0.15mm, -2.00mm
Pin Size: 29.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35892-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Hilux LN106R (2.8 Litre 4 Cyl 3L SOHC 8v):
  • LN106 4WD Utility 2 Door [01/1993 to 12/1998] 65KW With Manual Transmission
  • LN106 4WD Utility 4 Door [01/1993 to 12/1999] 65KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Hilux LN106R (2.8 Litre 4 Cyl 3L SOHC 8v):
  • 4WD Ute 2 Door [09/1988 to 08/1997] 68KW With Manual Transmission
  • 4WD Ute 2 Door [10/1988 to 11/1997] 60KW With Manual Transmission
  • 4WD Ute 4 Door [10/1988 to 11/1997] 60KW With Manual Transmission

Description

Combustion Bowl OD

Alfin Insert
