Toyota >> Hilux >> RN105R >> 2.4 Litre 4 Cyl 22R SOHC 8v >> 10/1988 - 08/1997 4 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux RN105R Ute [10/1988 to 08/1997] (2.4L 22R 4 Cyl SOHC CARB)

Part
Nason logo

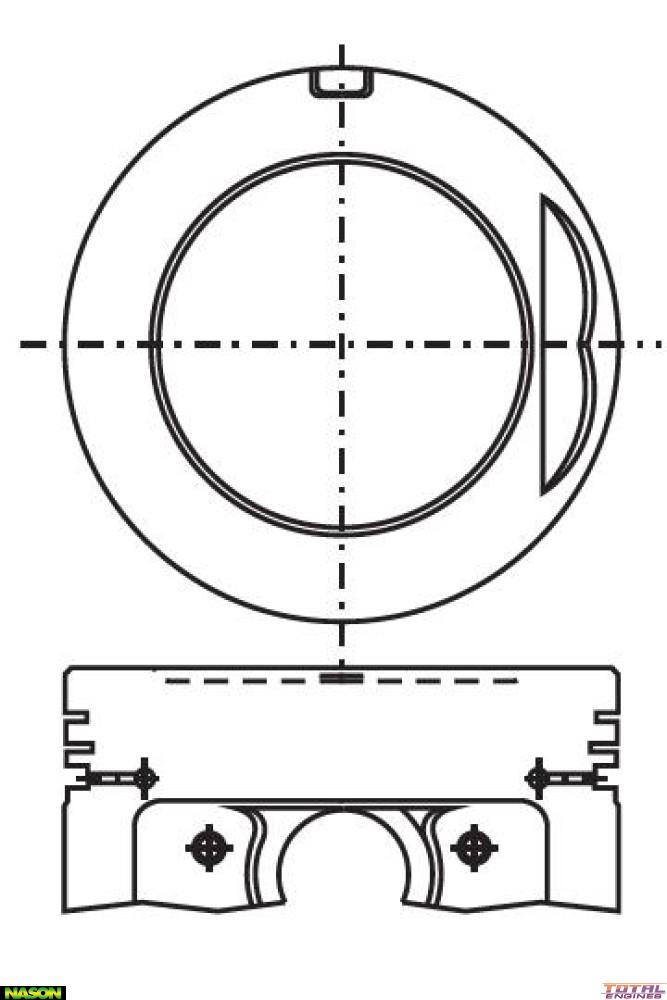

Nason Piston & pin set

Fitment Information:

Nason, 1.00mm Oversize

$238.10

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 64.00mm
Comp Height: 35.00mm - 2.20mm
Pin Size: 22.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4216 or 4216
Size: 1.00mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Hilux RN105R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • RN104 4WD Utility 4 Door [01/1993 to 12/1994] 75KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Hilux RN105R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • 4WD Ute 2 Door [10/1988 to 08/1997] 75KW With Manual Transmission
  • 4WD Ute 4 Door [10/1988 to 08/1997] 75KW With Manual Transmission
  • RN104 4WD Cab Chassis 2 Door [10/1988 to 11/1997] 75KW With Manual Transmission
  • RN104 4WD Ute 4 Door [10/1988 to 11/1997] 75KW With Manual Transmission

Description

Nason, 1.00mm Oversize
