Toyota >> Hilux >> RN106R >> 2.4 Litre 4 Cyl 22R SOHC 8v >> 01/1994 - 12/1998 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux RN106R Ute [01/1994 to 12/1998] (2.4L 22R 4 Cyl SOHC CARB)

Part
Nason logo

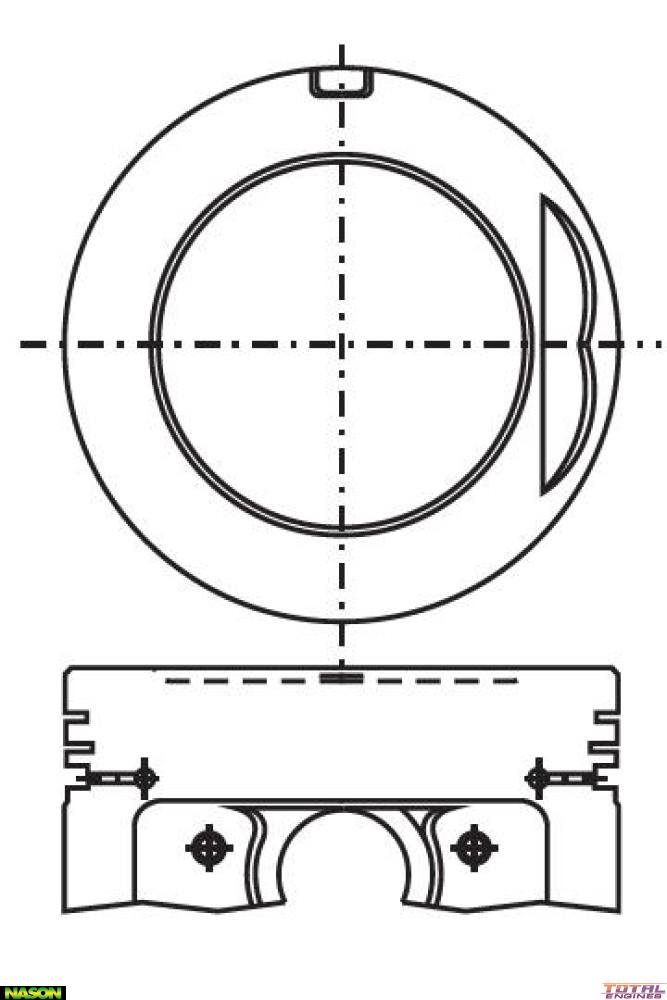

Nason Piston & pin set

$238.10

Specifications
Pin Size: 22.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4216 or 4216
Comp Height: 35.00mm - 2.20mm
Length: 64.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: Std
Std Bore Size: 92.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hilux RN106R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • 4WD Ute 2 Door [01/1994 to 12/1998] 75KW With Manual Transmission
  • SR5 RN107 4WD Ute 4 Door [01/1991 to 11/1997] 75KW With Manual Transmission

Description

Nason, STD Size
