Toyota >> Hilux >> RN130R >> 2.4 Litre 4 Cyl 22R SOHC 8v >> RN138 10/1989 - 06/1996 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux RN130R RN138 Wagon [10/1989 to 06/1996] (2.4L 22R 4 Cyl SOHC CARB)

Part
Nason logo

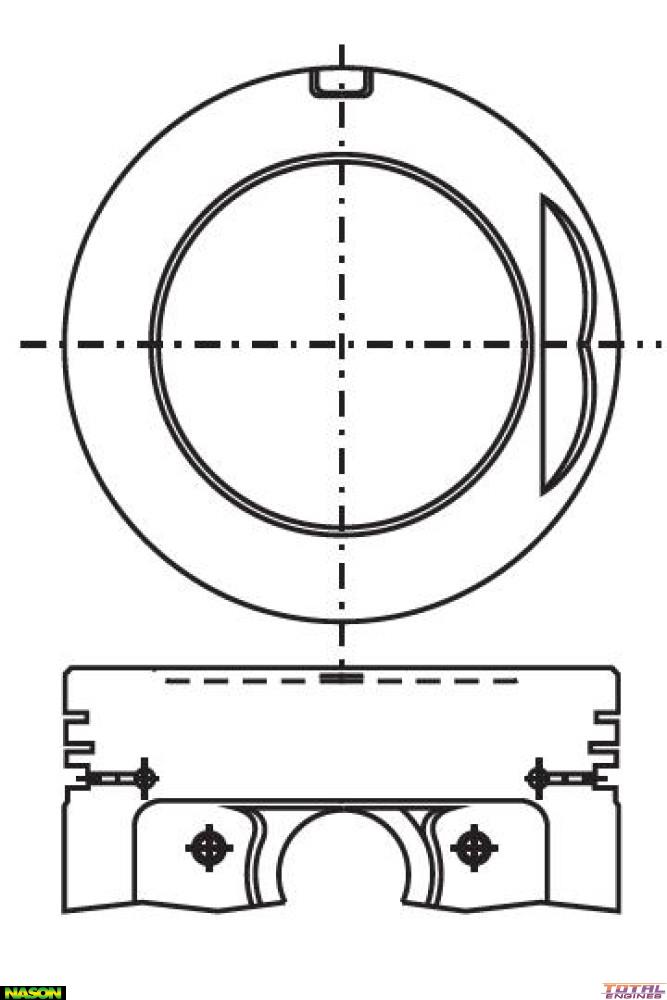

Nason Piston & pin set

$238.10

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 64.00mm
Comp Height: 35.00mm - 2.20mm
Pin Size: 22.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4216 or 4216
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hilux RN130R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • RN138 4WD Wagon 4 Door [10/1989 to 06/1996] With Manual Transmission

Description

Nason, 0.50mm Oversize
