Toyota >> Hilux >> RN85R >> 2.4 Litre 4 Cyl 22R SOHC 8v >> 10/1988 - 11/1997 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux RN85R Ute [10/1988 to 11/1997] (2.4L 22R 4 Cyl SOHC CARB)

Part
Nason logo

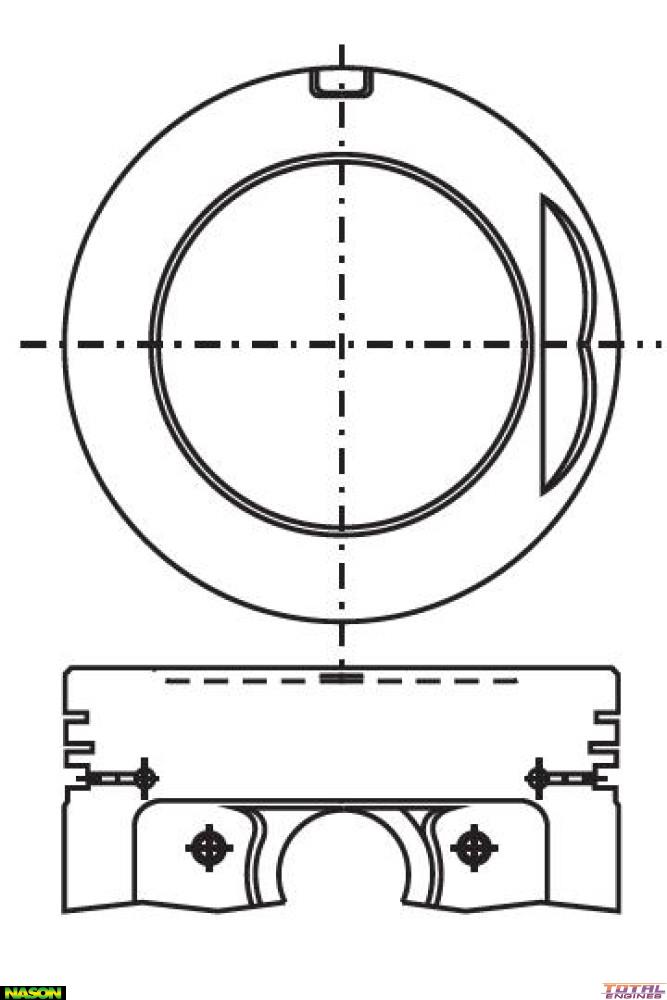

Nason Piston & pin set

$238.10

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4216 or 4216
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 22.00mm x 70.00mm
Comp Height: 35.00mm - 2.20mm
Length: 64.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 92.00mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Hilux RN85R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • RN85 RWD Utility 2 Door [01/1990 to 12/1998] 75KW With Manual Transmission
  • RN85 RWD Utility 4 Door [01/1990 to 12/1998] 75KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Hilux RN85R (2.4 Litre 4 Cyl 22R SOHC 8v):
  • RWD Ute 2 Door [10/1988 to 11/1997] 75KW With Auto or Manual Transmission
  • RWD Ute 4 Door [10/1988 to 11/1997] 75KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
