Toyota >> Hilux >> RZN147R >> 2.0 Litre 4 Cyl 1RZ-E SOHC 8v >> Workmate 01/2000 - 10/2002 2 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux RZN147R Workmate Ute [01/2000 to 10/2002] (2.0L 1RZ-E 4 Cyl SOHC EFI)

Part
Nason logo

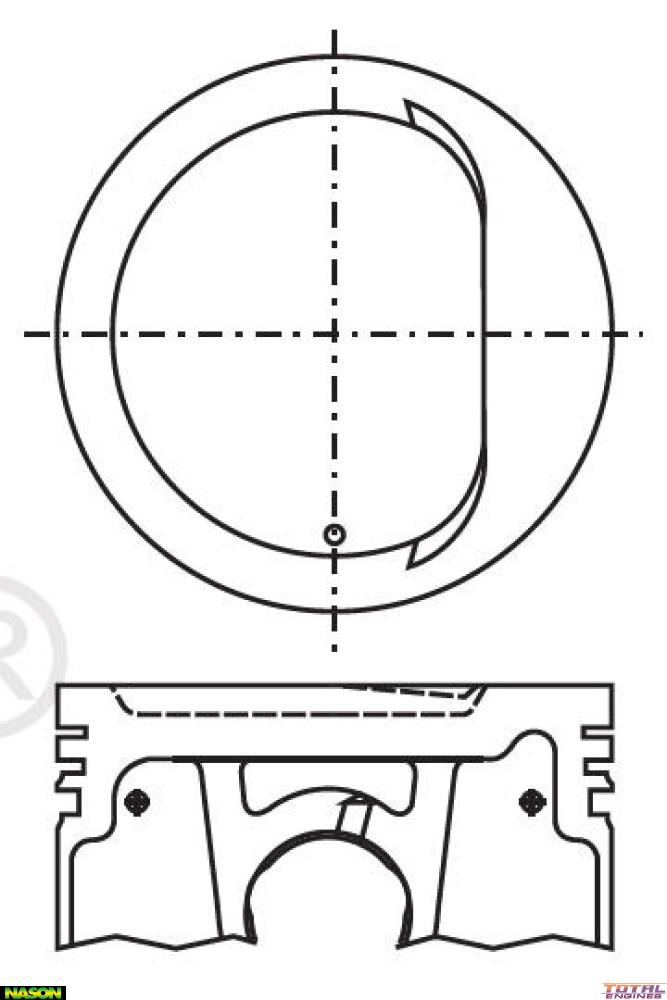

Nason Piston & Pin Set

$286.36

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 59.00mm
Comp Height: 35.50mm - 4.40mm
Pin Size: 24.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5281
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Hilux RZN147R (2.0 Litre 4 Cyl 1RZ-E SOHC 8v):
  • Workmate RWD Ute 2 Door [11/1997 to 12/2000] 80KW With Manual Transmission
  • Workmate RWD Ute 2 Door [11/1997 to 10/2002] 80KW With Manual Transmission
  • Workmate RWD Ute 2 Door [01/2000 to 10/2002] 80KW With Manual Transmission

Description

Nason Piston & Pin Set 0.50 Oversize - Precision Engineered Performance

Brand: Nason

Category: Cylinder Block

Upgrade your engine’s performance with the Nason Piston & Pin Set 0.50 Oversize, specifically designed to enhance your Toyota Hiace RZH100R 2.0L and Toyota Hilux RZN147R 2.0L. Whether you’re looking for improved power, efficiency, or reliability, this piston set is engineered to deliver outstanding performance and longevity.

Product Features:

  • Complete Set: Includes 4 precision-engineered pistons & pins for a comprehensive upgrade to your engine.
  • Oversize Design: With a size of 0.50mm / .020\", this piston set allows for better cylinder sealing and increased horsepower.
  • Standard Bore Size: Fits standard bore dimensions of 86.00mm, ensuring compatibility and ease of installation.
  • Dish Top Head Type: Featuring a dish top design with 2 valve reliefs, these pistons are optimized for efficient combustion and better performance.
  • Durable Cast Construction: The cast piston type guarantees strength and durability, standing up to the demands of your engine.
  • Ideal Dimensions: Length of 59.00mm, comp height of 35.50mm minus 4.40mm, and a pin size of 24.00mm x 61.00mm ensure a perfect fit within your engine’s specifications.
  • Pin Type: Full floating pins allow for smooth movement and reduced friction, enhancing overall performance.
  • Ring Widths: The top ring measures 1.75mm, the second ring is 1.50mm, and the oil ring is 4.00mm, all designed for optimal sealing and efficiency.
  • Ring Set: Comes with Ring Set 5281 to ensure complete compatibility and performance.

Upgrade your engine to the next level with the Nason Piston & Pin Set 0.50 Oversize. Whether you're repairing or rebuilding, this high-quality set will provide the reliability and performance you need for a smooth and efficient operation. Don’t settle for less—choose Nason for quality you can trust!

Compatibility Note: Please ensure your engine specifications match before purchase. Check the label on the box for specific piston to bore measurements to guarantee the best fit.

Order your Nason Piston & Pin Set today and experience the difference in performance and reliability!
