Toyota >> Hilux >> YN58R >> 2.2 Litre 4 Cyl 4Y OHV 8v >> 10/1987 - 09/1988 4 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux YN58R Ute [10/1987 to 09/1988] (2.2L 4Y 4 Cyl OHV CARB)

Part
Nason logo

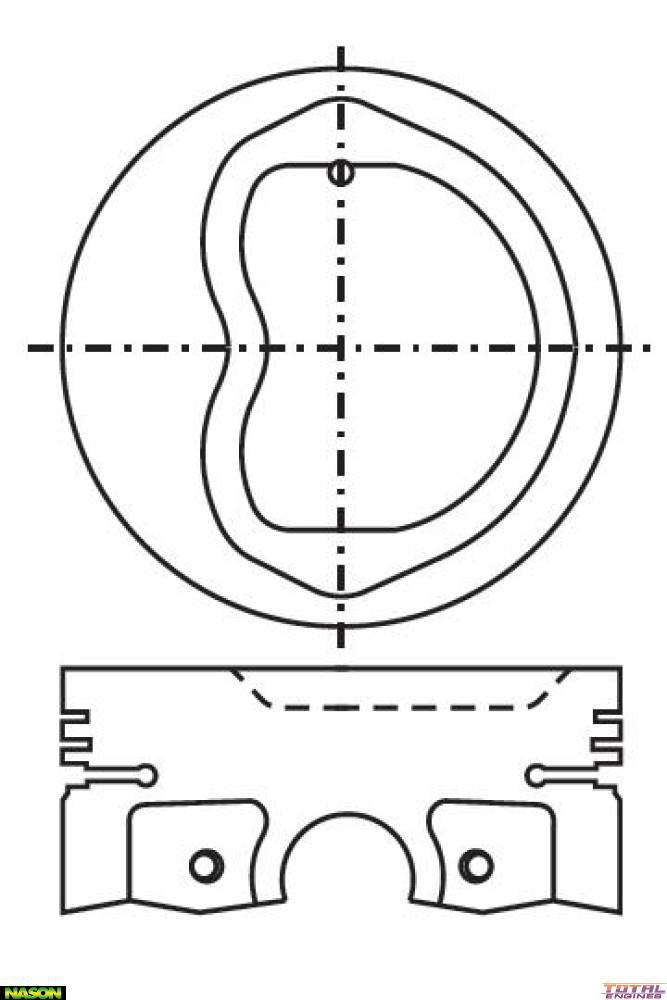

Nason Piston & pin set

Fitment Information:

Nason, STD Size

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 91.00mm
Size: Std
Head Type: Dish Top
Piston Type: Cast
Length: 65.00mm
Comp Height: 35.00mm - 6.20mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4480 or 4480

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Hilux YN87R (2.2 Litre 4 Cyl 4Y OHV 8v):
  • YN87 RWD Utility 4 Door [10/1987 to 12/1992] 69KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Hilux YN106R (2.2 Litre 4 Cyl 4Y OHV 8v):
  • 4WD Ute 2 Door [01/1988 to 12/1992] With Manual Transmission
Toyota Hilux YN58R (2.2 Litre 4 Cyl 4Y OHV 8v):
  • RWD Ute 2 Door [10/1987 to 09/1988] 69KW With Auto or Manual Transmission
  • RWD Ute 4 Door [10/1987 to 09/1988] 69KW With Auto or Manual Transmission
Toyota Hilux YN67R (2.2 Litre 4 Cyl 4Y OHV 8v):
  • 4WD Ute 2 Door [11/1985 to 09/1988] 69KW With Manual Transmission
  • 4WD Ute 4 Door [11/1985 to 09/1988] 69KW With Auto or Manual Transmission

Description

Nason, STD Size
