Toyota >> Landcruiser >> FZJ105R >> 4.5 Litre 6 Cyl 1FZ-FE DOHC 24v >> 06/2000 - 09/2002 4 Door SUV >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Landcruiser FZJ105R SUV [06/2000 to 09/2002] (4.5L 1FZ-FE 6 Cyl DOHC MPFI)

Part
Nason logo

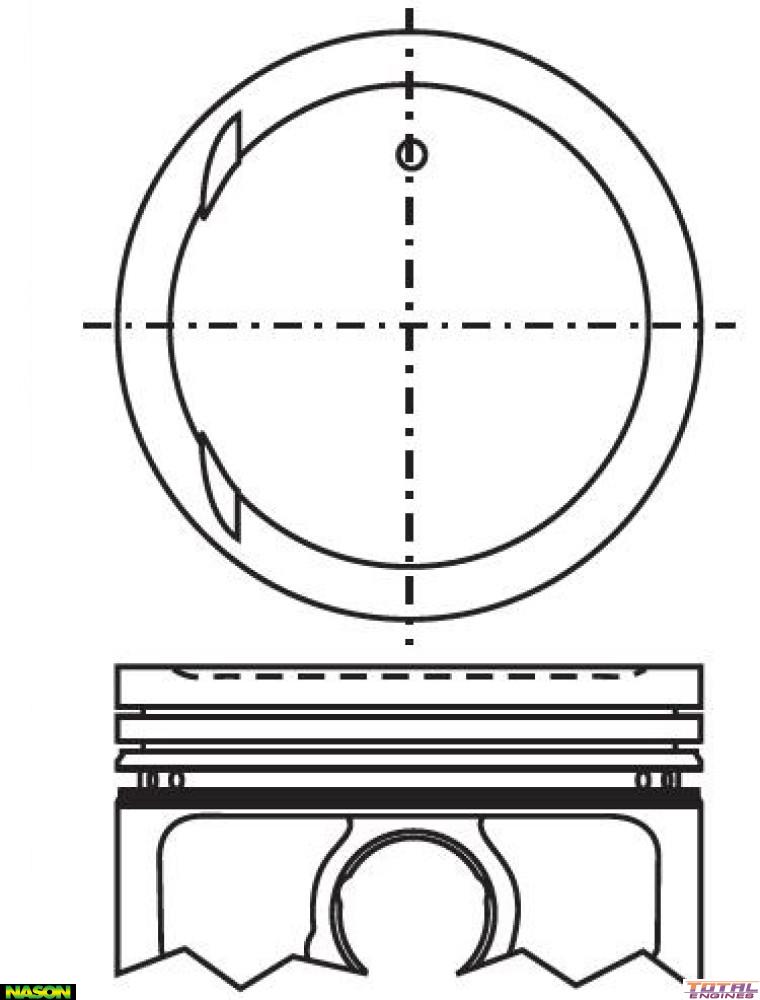

Nason Piston & Pin Set

Fitment Information:

Nason, STD Size 66.00mm Long

$649.94

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 100.00mm
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 66.00mm
Comp Height: 42.00mm - 1.10mm
Pin Size: 26.00mm x 62.70mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C4776 or 4776
Size: 66.00mm Long

Tick This part will fit the following Vehicles:

Toyota Landcruiser FZJ105R (4.5 Litre 6 Cyl 1FZ-FE DOHC 24v):
  • 4WD SUV 4 Door [01/1998 to 10/2001] 165KW With Auto or Manual Transmission
  • 4WD SUV 4 Door [06/2000 to 09/2002] 165KW With Auto or Manual Transmission
Toyota Landcruiser FZJ75R (4.5 Litre 6 Cyl 1FZ-FE DOHC 24v):
  • 4WD Hardtop 2 Door [11/1992 to 11/1999] 158KW With Manual Transmission
  • RV LWB 4WD Cab Chassis 2 Door [11/1992 to 11/1999] 158KW With Manual Transmission
Toyota Landcruiser FZJ78R (4.5 Litre 6 Cyl 1FZ-FE DOHC 24v):
  • 4WD Troop 3 Door [10/1999 to 07/2001] 165KW With Manual Transmission
Toyota Landcruiser FZJ79R (4.5 Litre 6 Cyl 1FZ-FE DOHC 24v):
  • 4WD Cab Chassis 2 Door [10/1999 to 02/2007] 165KW With Manual Transmission
Toyota Landcruiser FZJ80R (4.5 Litre 6 Cyl 1FZ-FE DOHC 24v):
  • 4WD SUV 4 Door [11/1992 to 02/1998] 158KW With Auto or Manual Transmission

Description

Nason Piston & Pin Set STD Size - Elevate Your Performance

Revitalize your engine with the Nason Piston & Pin Set, designed specifically for durability and performance in mind. Perfectly engineered for Toyota Landcruiser models FZJ80R 4.5L, this piston and pin set offers unbeatable reliability and superior efficiency.

Key Features:

  • Complete Set: Each purchase includes 6 high-quality pistons and pins, providing everything you need for a comprehensive engine upgrade.
  • Precision Engineering: Featuring a standard bore size of 100.00mm and a length of 66.00mm, these pistons boast a cast construction with a dish top design and two valve reliefs, ensuring optimal combustion characteristics.
  • Advanced Materials: The anodized head provides enhanced resistance against wear and tear, while the skirt coating further decreases friction for improved engine performance.
  • Full Floating Pins: The 26.00mm x 62.70mm full floating pin design enhances the efficiency and reliability of your engine's operation.
  • Custom Fit: Specifically crafted to meet the demands of your Landcruiser, ensuring perfect compatibility and performance – just check the label on the box for piston to bore specifications.

Technical Specifications:

  • Piston Set: 6 x Piston & Pins
  • Std Bore Size: 100.00mm
  • Comp Height: 42.00mm - 1.10mm
  • Top Ring Width: 1.75mm
  • 2nd Ring Width: 2.00mm
  • Oil Ring Width: 4.00mm
  • Ring Set: 2C4776 or 4776

Transform your engine’s performance with the Nason Piston & Pin Set STD Size. Whether you're rebuilding or upgrading, trust Nason for quality and dependability that keeps your vehicle running smoothly. Elevate your adventure with the performance you deserve! Order yours today!
