Toyota >> Landcruiser >> HDJ80R >> 4.2 Litre 6 Cyl 1HD-T SOHC 24v >> 05/1990 - 01/1995 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Landcruiser HDJ80R SUV [08/1992 to 01/1995] (4.2L 1HD-T 6 Cyl SOHC Turbo EFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

08/1992 -->, Oversize - Pistons Only- Does not Include Rings - 42.50mm Combustion Bowl

Out Of Stock

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: 0.50mm
Head Type: Combustion Bowl
Piston Type: Cast
Length: 80.70mm
Comp Height: 49.70mm, -16.40mm

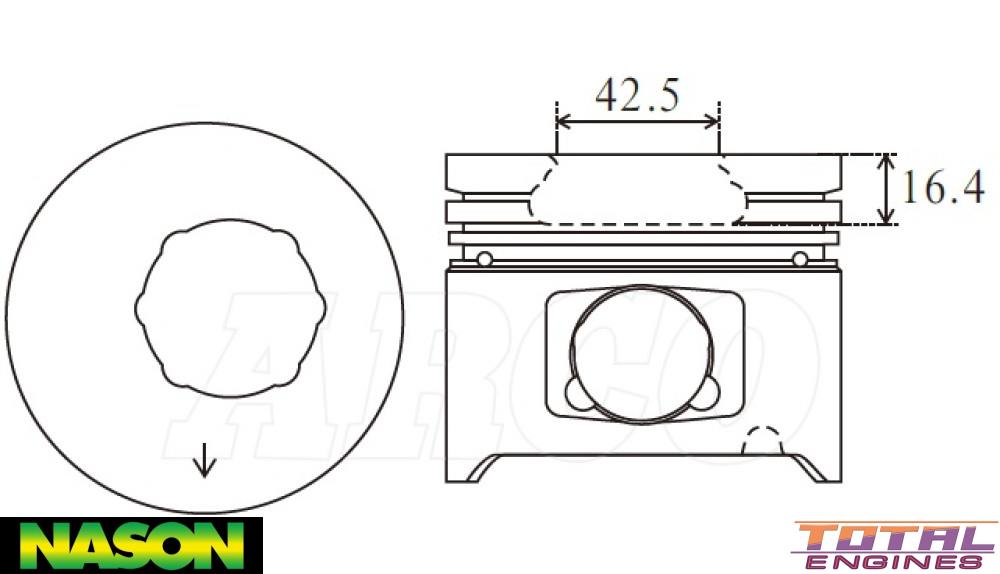

Combustion Bowl OD: 42.50mm
Pin Size: 33.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35898-0.50
Size: 42.50mm Combustion Bowl

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Landcruiser HDJ80R (4.2 Litre 6 Cyl 1HD-T SOHC 24v):
  • 4WD SUV 4 Door [05/1990 to 07/1992] 118KW With Auto or Manual Transmission
Toyota Landcruiser HDJ81R (4.2 Litre 6 Cyl 1HD-T SOHC 24v):
  • 4WD SUV 4 Door [10/1989 to 07/1992] 123KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Landcruiser HDJ80R (4.2 Litre 6 Cyl 1HD-T SOHC 24v):
  • 4WD SUV 4 Door [08/1992 to 01/1995] 118KW With Auto or Manual Transmission
Toyota Landcruiser HDJ81R (4.2 Litre 6 Cyl 1HD-T SOHC 24v):
  • 4WD SUV 4 Door [08/1992 to 12/1994] 123KW With Auto or Manual Transmission

Description

Suits From 8/92 With 42.50mm Combustion Bowl

Alfin Insert
