Toyota >> Landcruiser >> HZJ75R >> 4.2 Litre 6 Cyl 1H-Z SOHC 12v >> 03/1990 - 08/1999 2 Door Hardtop >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Landcruiser HZJ75R Hardtop [03/1990 to 01/1998] (4.2L 1H-Z 6 Cyl SOHC Diesel Inj)

Part
Nason logo

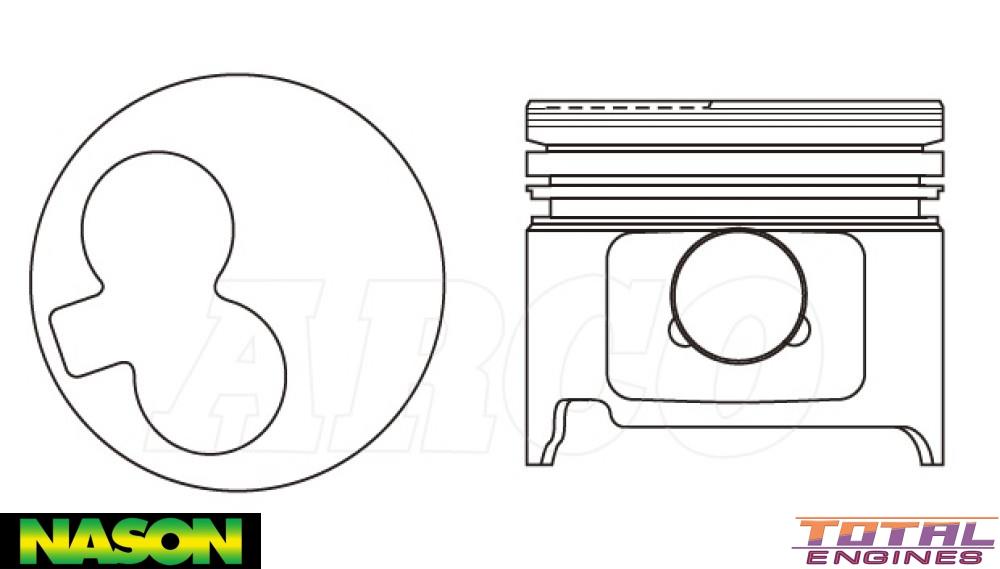

Nason Piston & pin set

Fitment Information:

--> 01/1998, Oversize - Pistons Only- Does not Include Rings - 70mm Combustion Relief

$627.41

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 80.50mm
Comp Height: 43.50mm, -1.60mm
Pin Size: 29.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35898-0.50
Size: 70mm Combustion Relief

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Landcruiser HZJ75R (4.2 Litre 6 Cyl 1H-Z SOHC 12v):
  • 4WD Hardtop 2 Door [02/1998 to 08/1999] 96KW With Manual Transmission
  • 4WD Ute 2 Door [02/1998 to 08/1999] 96KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Landcruiser HZJ75R (4.2 Litre 6 Cyl 1H-Z SOHC 12v):
  • 4WD Hardtop 2 Door [03/1990 to 01/1998] 96KW With Manual Transmission
  • 4WD Ute 2 Door [03/1990 to 01/1998] 96KW With Manual Transmission

Description

Suits Up To 1/98 With 70mm Combustion Relief

Combustion Bowl OD

Alfin Insert
