Toyota >> Landcruiser >> HZJ78R >> 4.2 Litre 6 Cyl 1H-Z SOHC 12v >> 10/1999 - 07/2001 3 Door Troop >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Landcruiser HZJ78R Troop [10/1999 to 07/2001] (4.2L 1H-Z 6 Cyl SOHC Diesel Inj)

Part
Nason logo

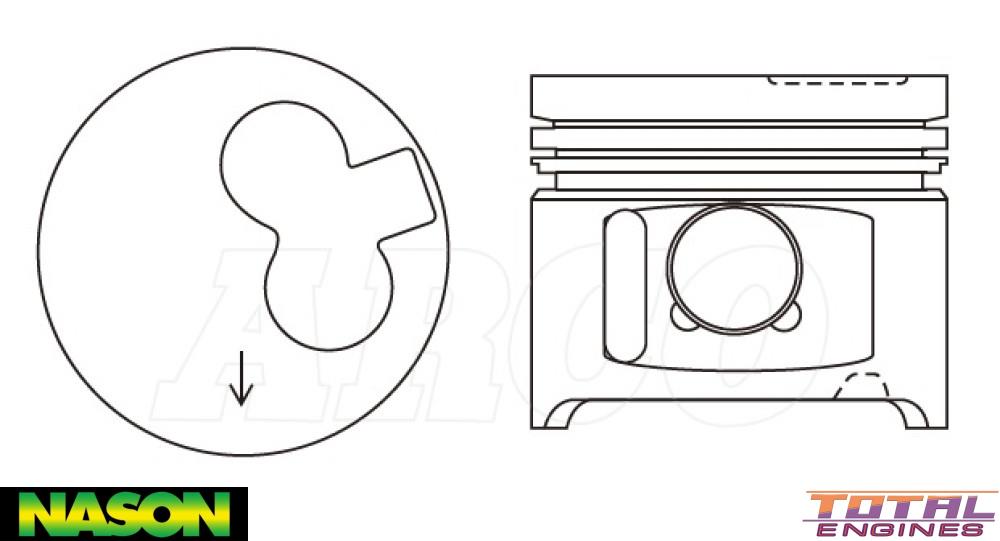

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings - 58mm Combustion Relief

$694.98

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: 0.50mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 80.50mm
Comp Height: 43.50mm, -1.50mm
Pin Size: 29.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35898-0.50
Size: 58mm Combustion Relief

Tick This part will fit the following Vehicles:

Toyota Landcruiser HZJ78R (4.2 Litre 6 Cyl 1H-Z SOHC 12v):
  • 4WD Troop 3 Door [10/1999 to 01/2007] 96KW With Manual Transmission
  • 4WD Troop 3 Door [10/1999 to 07/2001] 96KW With Manual Transmission

Description

Suits From 1/98 With 58mm Combustion Relief

Combustion Bowl OD

Alfin Insert
