Toyota >> Liteace >> KM20R >> 1.3 Litre 4 Cyl 4K OHV 8v >> KM20 10/1979 - 08/1985 3 Door Commercial Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Liteace KM20R KM20 Commercial Van [10/1979 to 08/1985] (1.3L 4K 4 Cyl OHV CARB)

Part
Nason logo

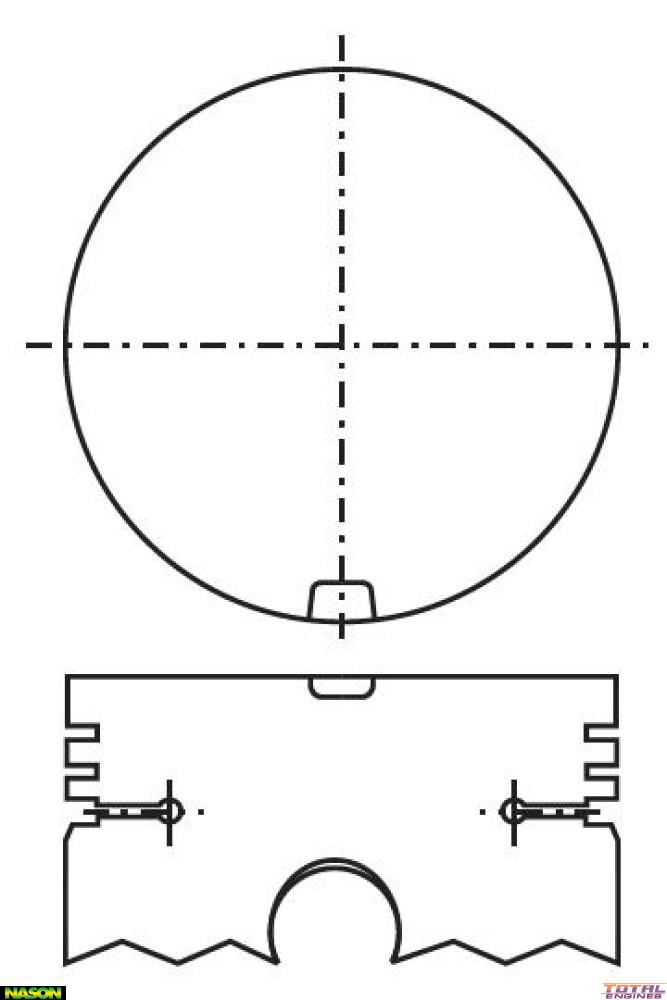

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 1.00mm / .040"
Head Type: Flat Top
Piston Type: Cast
Length: 75.00mm
Comp Height: 36.00mm
Pin Size: 18.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C6813 or 6813
Size: 1.00mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Liteace KM21R (1.3 Litre 4 Cyl 4K OHV 8v):
  • KM21 RWD Commercial Van 3 Door [10/1982 to 09/1986] With Transmission

Tick This part will fit the following Vehicles:

Toyota Corolla KE38R (1.3 Litre 4 Cyl 4K OHV 8v):
  • KE38 RWD Wagon 4 Door [11/1978 to 09/1981] 45KW With Transmission
Toyota Liteace KM20R (1.3 Litre 4 Cyl 4K OHV 8v):
  • KM20 RWD Commercial Van 3 Door [10/1979 to 08/1985] With Transmission
Toyota Townace KM50R (1.3 Litre 4 Cyl 4K OHV 8v):
  • KM50 RWD Commercial Van 3 Door [10/1986 to 08/1990] With Transmission

Description

Nason, 1.00mm Oversize
